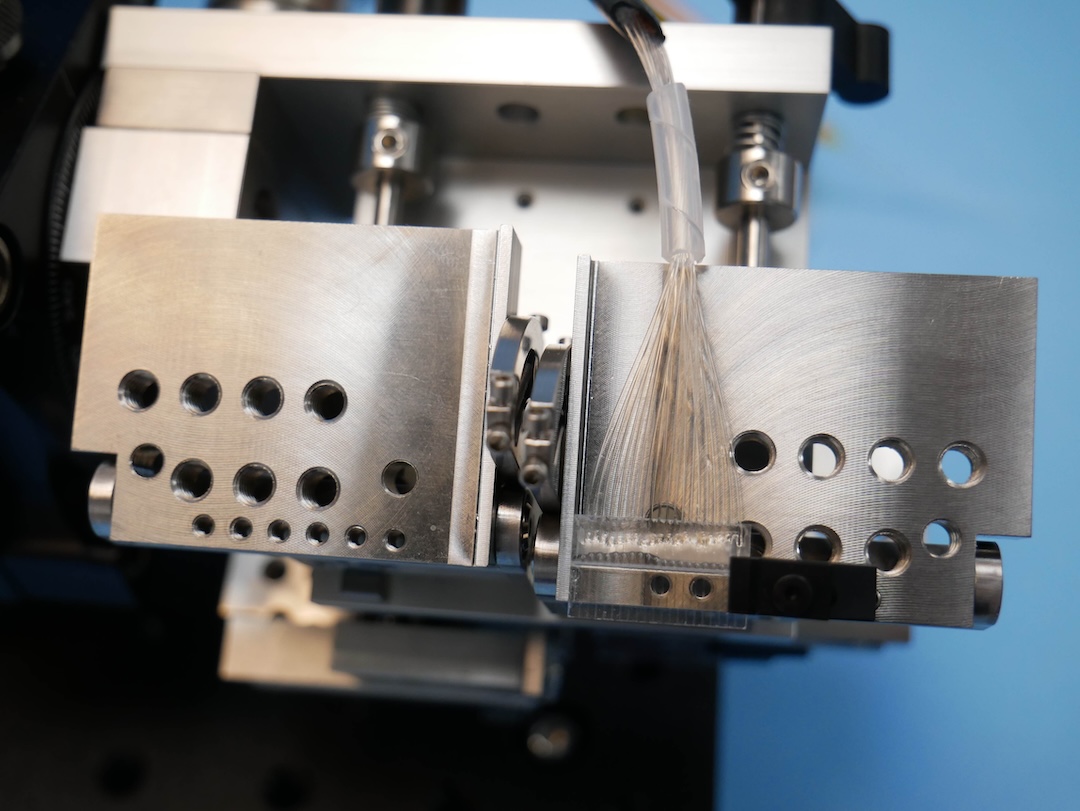

NOVA™ Workholder for PICs/Waveguides, Fiber Arrays, and Optical Chips
The NOVA™ Workholder is designed for precise polishing and shaping of photonic components, including waveguides, fiber arrays, and optical chips. It ensures high-quality finishes and repeatable results, making it an essential tool for photonic component production.
Key Features:

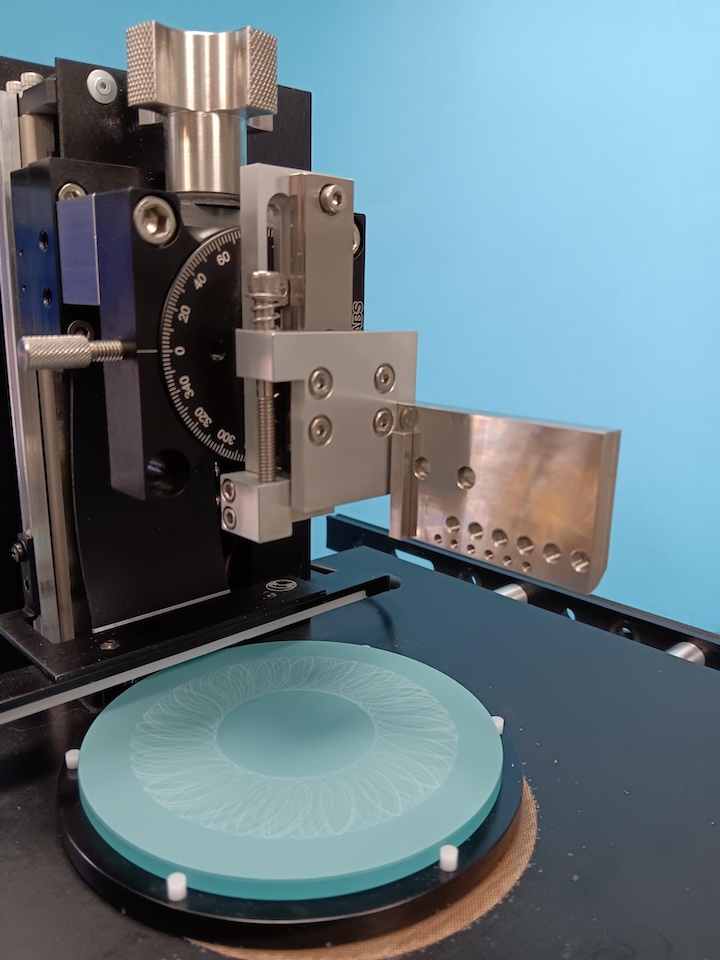

Adjustable Polishing Angles: 0° to 45° for flexible processing.
Component Size Compatibility:
- Standard: 3mm to 25mm edge width
- Extended Length Model: Up to 50mm
- Supports thicknesses from ~0.5mm to >5mm

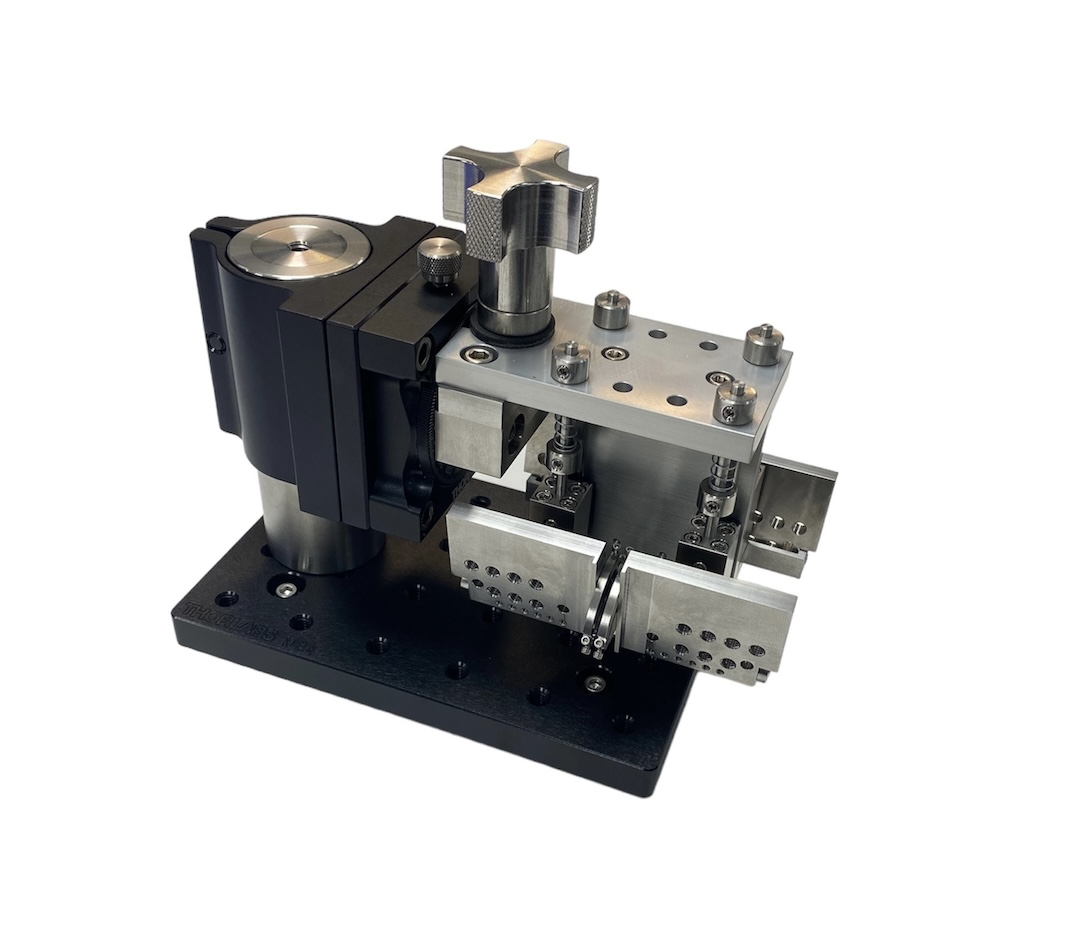

Workholder Options:

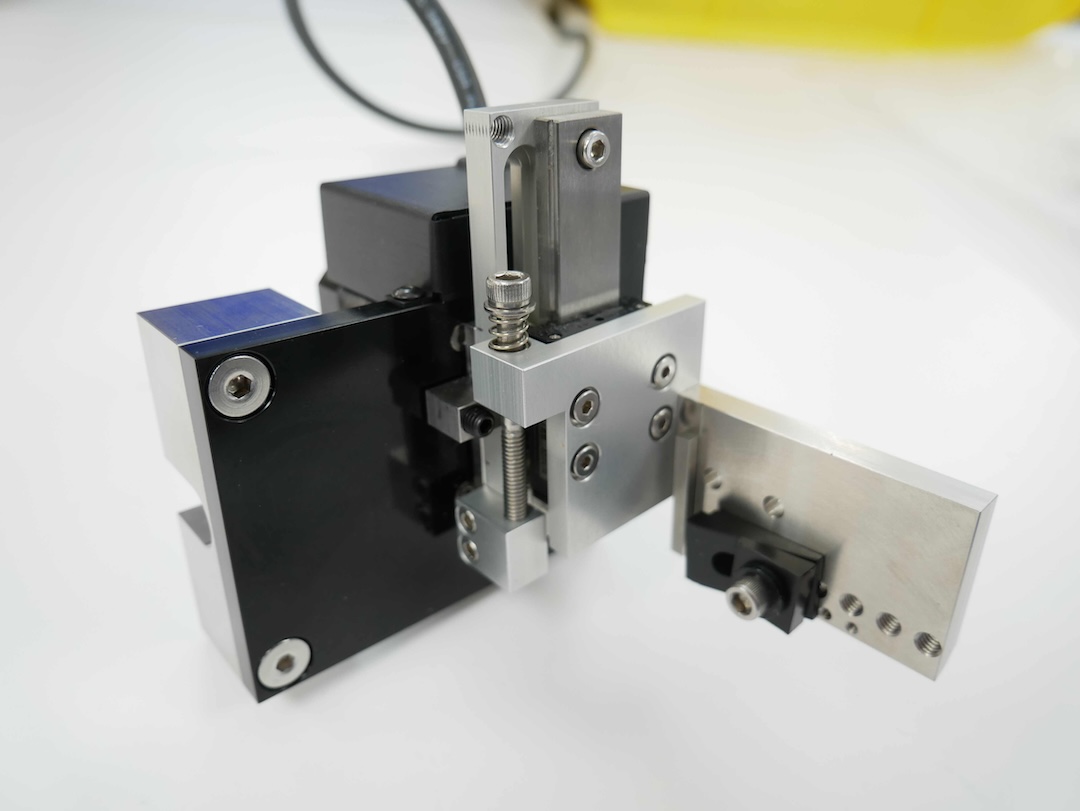

- Single-Position Variable Angle (manual or automated)
- Four-Position Variable Angle (manual)
- Eight-Position Fixed Angle

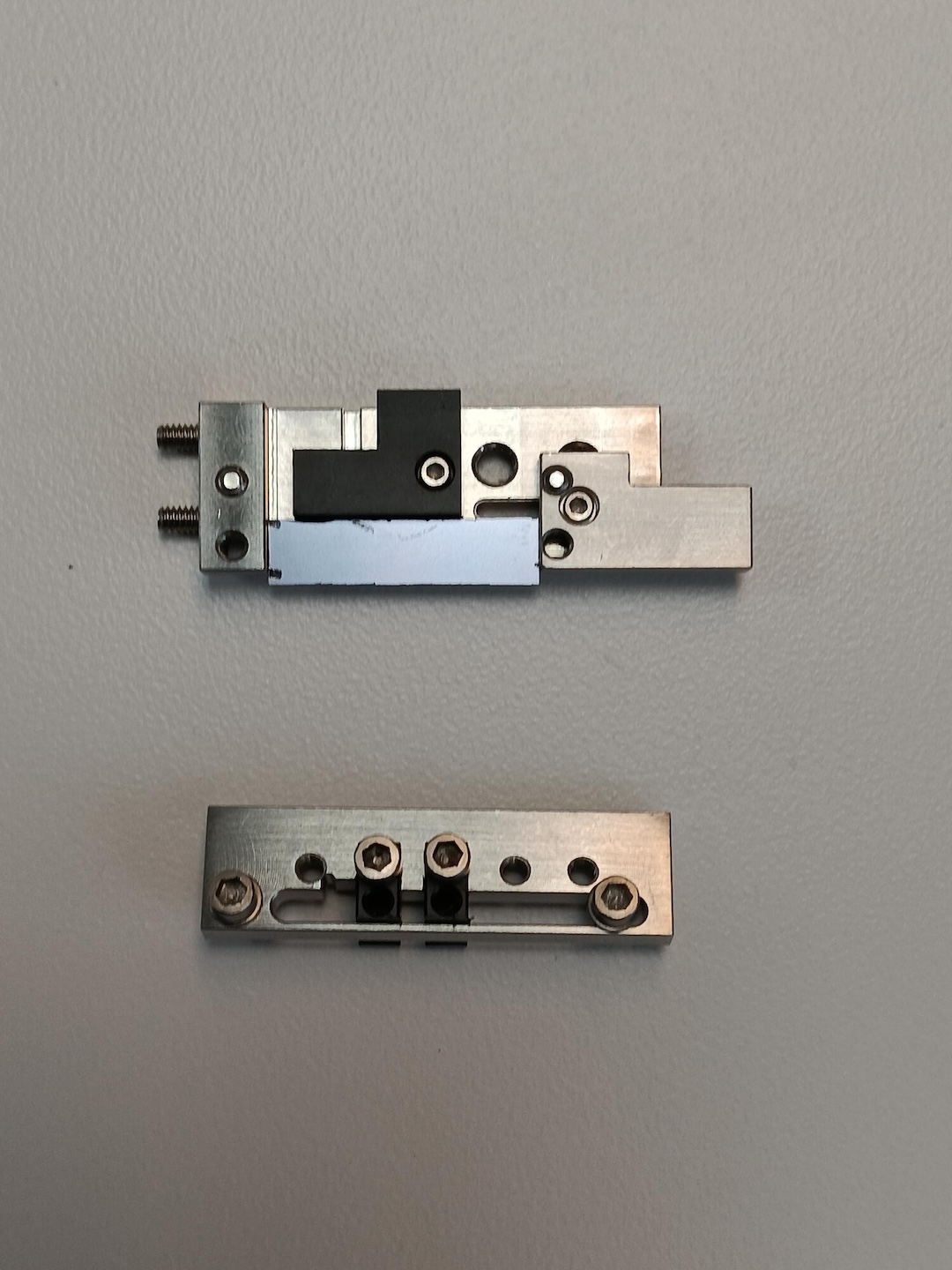

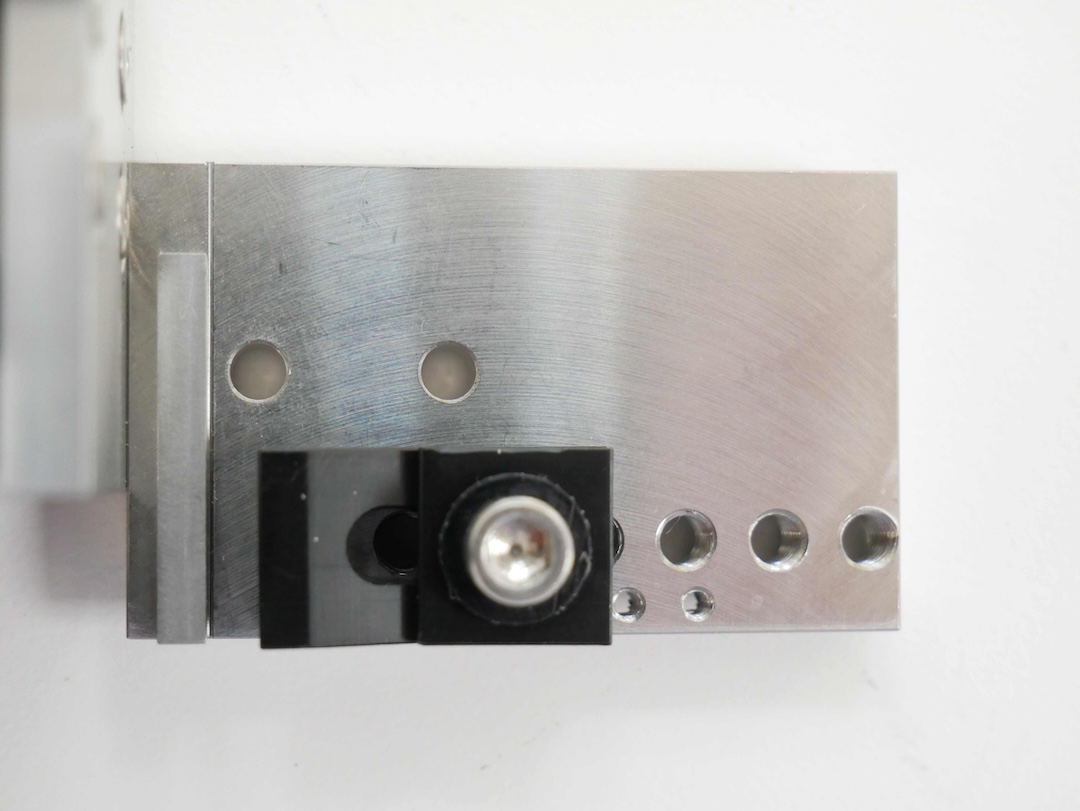

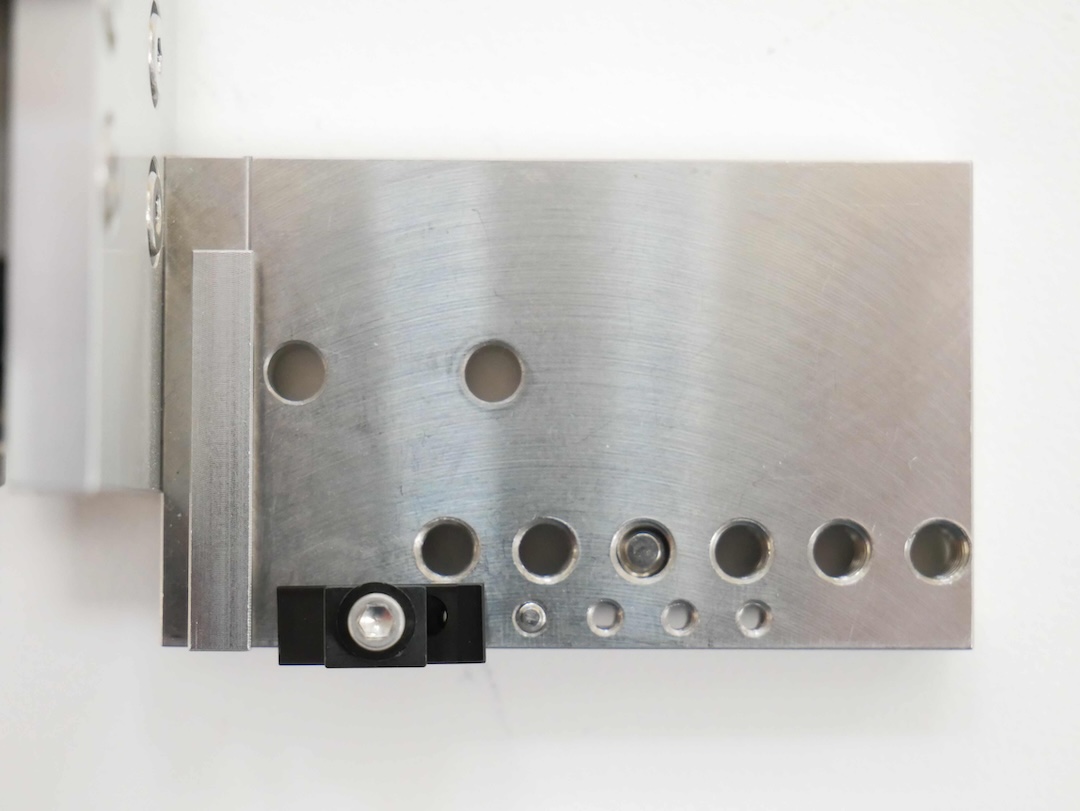

PIC & Waveguide Carriers:
- Ergonomic and repeatable mounting
- Seamless integration with NV-FLEX and NV-FLEX-A fixtures for optimal polishing
The NOVA™ Workholder provides the precision and flexibility needed for photonic manufacturing, ensuring consistent edge preparation and polishing for PICs, optical chips, and fiber arrays.
Related Videos:
No related videos found.
Related Q&A:
Aug. 8, 2025, 6:42 p.m.
Q
Does clamping force or rigidity play a role in preventing chipping of thin films on SiN?
A

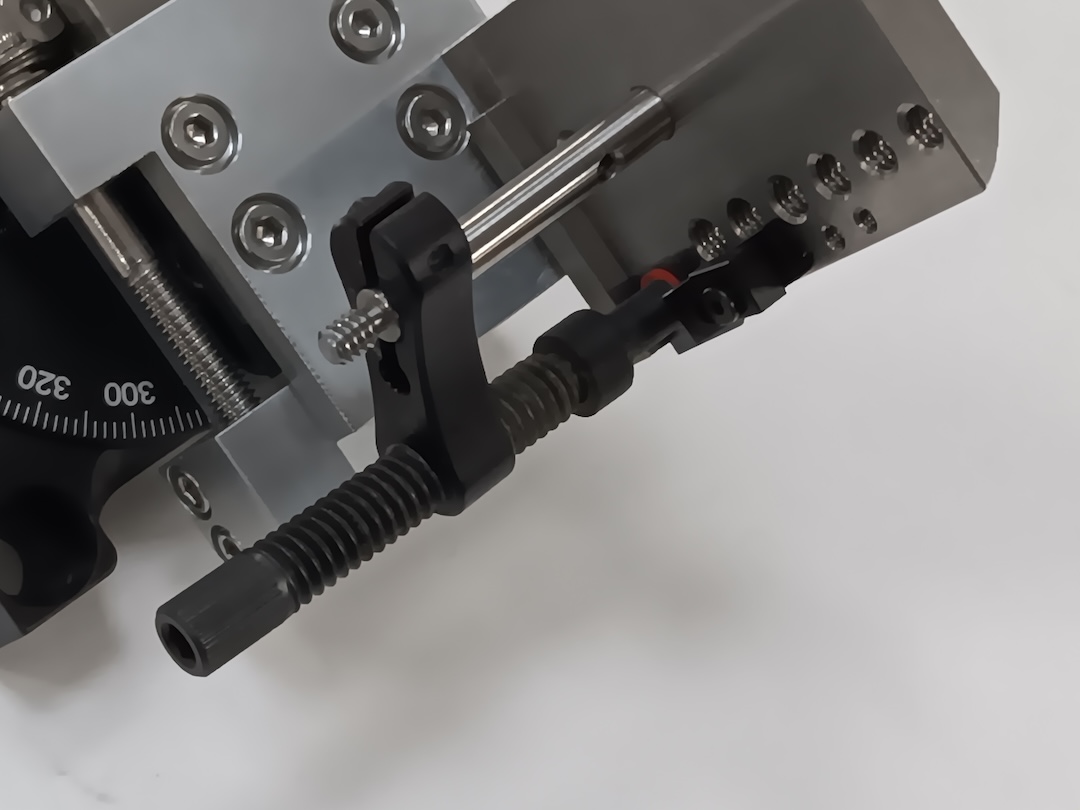

There are a number of variables that can contribute to chipping, especially proper clamping force. We also offer a pressure applicator that holds the chip against the waveguide mounting plate. https://krelltech.com/items/waveguide-pressure-applicator/. Also, diamond films tend to "cut" cleaner.
