DART Bare Fiber Adapter

DART™ opens new worlds for traditional bare fiber holding.  In addition to temporarily securing a fiber at a fixed position, an integrated roller mechanism moves the fiber in and out of the adapter.  This allows for variable protrusion and retraction of the fiber endface relative to DART™’s precision support ferrule.

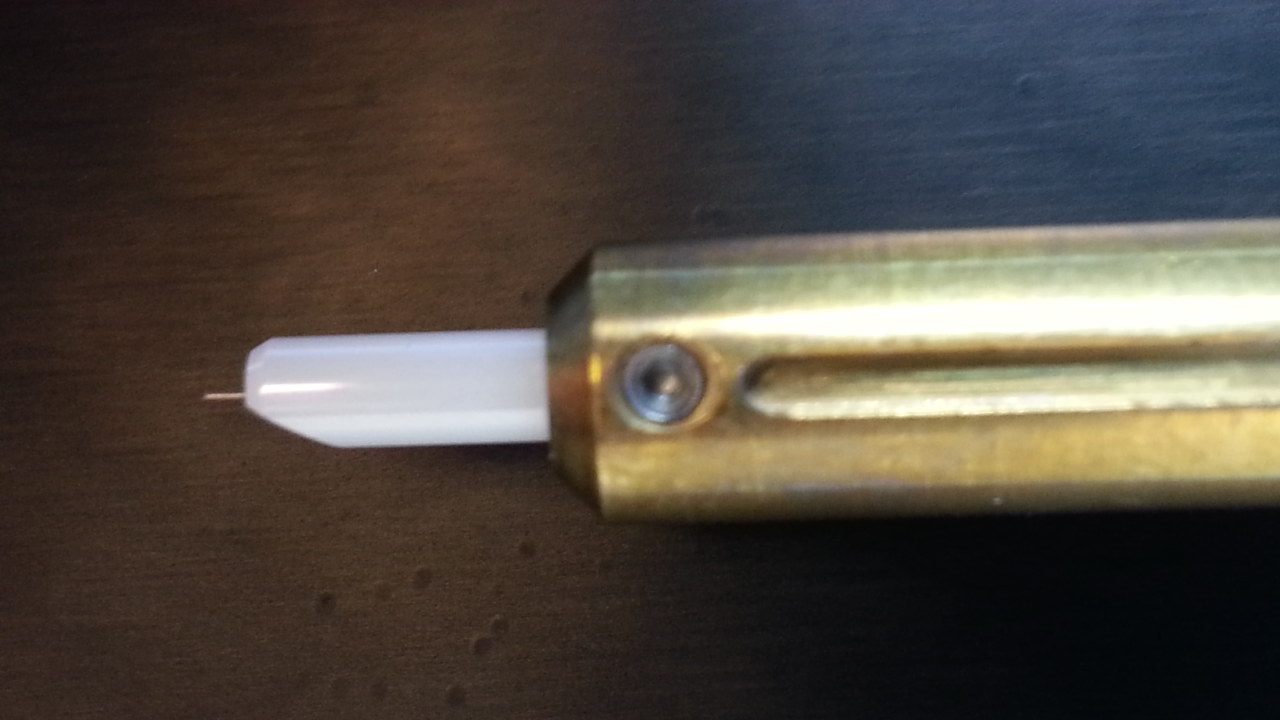

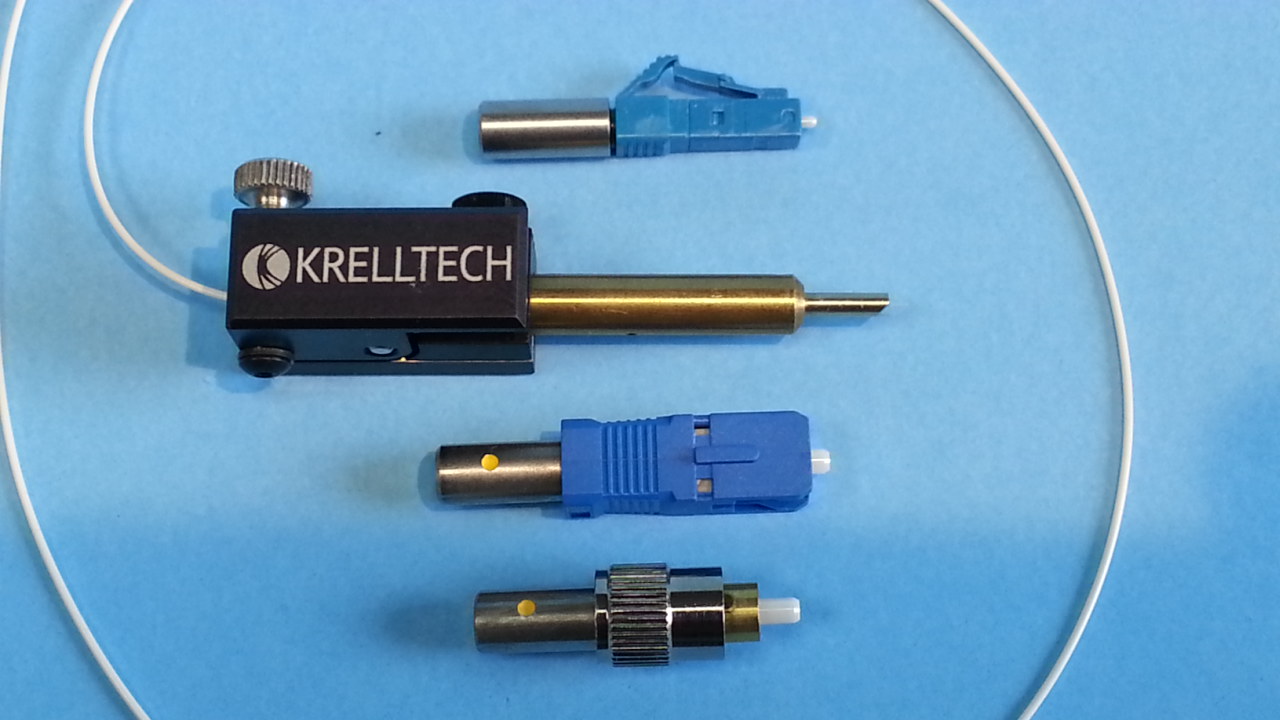

The universal 2.5mm ferrule interfaces with a variety of equipment and components such as polishers, electro-optic packages, test equipment and more.  DART™ can be configured for fiber diameters ranging from 80um to >1mm using interchangeable ferrule tips.

Starting at
$ 990

No related videos found.

May 27, 2020, 9:19 p.m.
Q
Is the front end of the adapter a ferrule?
A
Yes. Depending upon fiber diameter and application, the ferrule is either ceramic or metallic.
May 15, 2020, 4:25 p.m.
Q
What is the minimum length fiber the dart can hold?
A
The standard minimum length is 65mm. But, we have made custom adapters for fiber lengths as short as 45mm.
April 29, 2020, 3:45 p.m.
Q
I have a SpecPro polisher that I use for polishing 2.5mm ferrules. Can the DART be used with SpecPro for polishing bare fibres?
A
Yes. DARTs can convert your connector polishing to a bare fiber polisher.
April 14, 2020, 4:35 p.m.
Q
Can POF fiber be used with this adapter?
A
Yes, both glass, plastic and other materials can be polished using the DART bare fiber adapter.,
April 3, 2020, 6:10 p.m.
Q
Do these support 80um fibers?
A
Yes
March 27, 2020, 6:57 p.m.
Q
Do I need to purchase this for polishing bare fibers?
A
Yes!
March 26, 2020, 7:18 p.m.
Q
Does this adapter offer an advancement feature?
A
Yes
March 26, 2020, 5:23 p.m.
Q
How many adapters will I need to order?
A
You will need 1 fiber adapter per polishing position.
March 23, 2020, 6:05 p.m.
Q
Does DART work with NOVA and older Trig Polishers (see attached).
A
Yes, DART can be used with both Trig and NOVA.
March 12, 2020, 6:23 p.m.
Q
Can this adapter support 900um buffered fiber?
A
Yes, and also standard 250um buffers.
Jan. 3, 2020, 4:16 p.m.
Q
Will DART work with the attached fiber specifications?
A
Yes, as long as the buffer strip length is >0.5mm.
Dec. 4, 2019, 5:35 p.m.
Q
Does DART work with POF (Plastic Optical Fiber)?
A
Yes, DART works with POF, glass, sapphire and many other types of fiber.
Dec. 4, 2019, 5:26 p.m.
Q
How about with NOVA?
A
Yes, up to 8 DARTS can be used with NOVA.
