NOVA™ Bare Fiber Polishing System

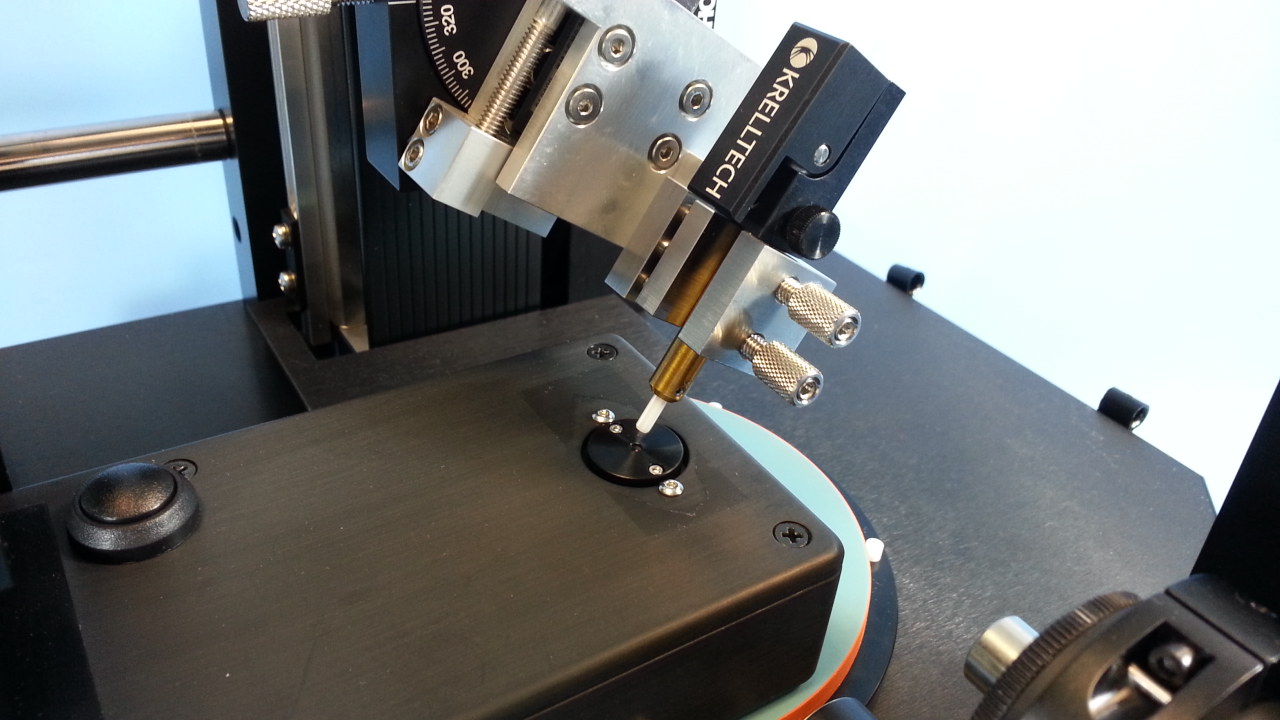

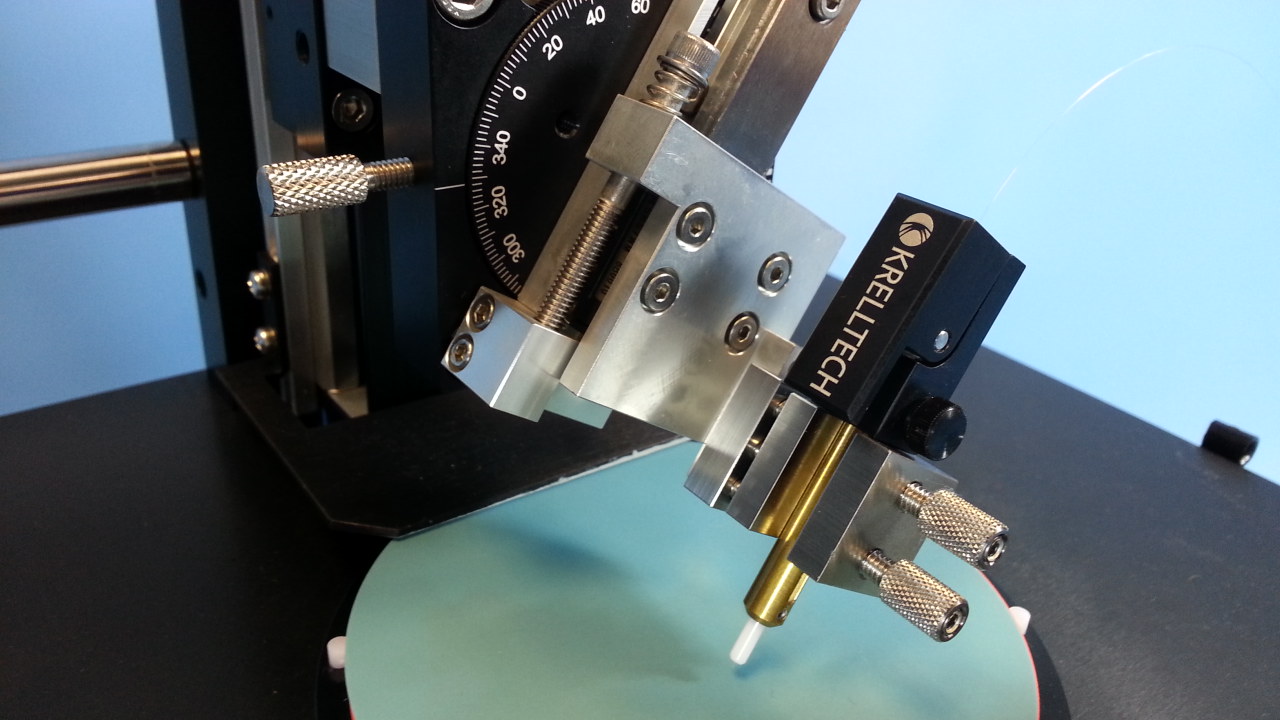

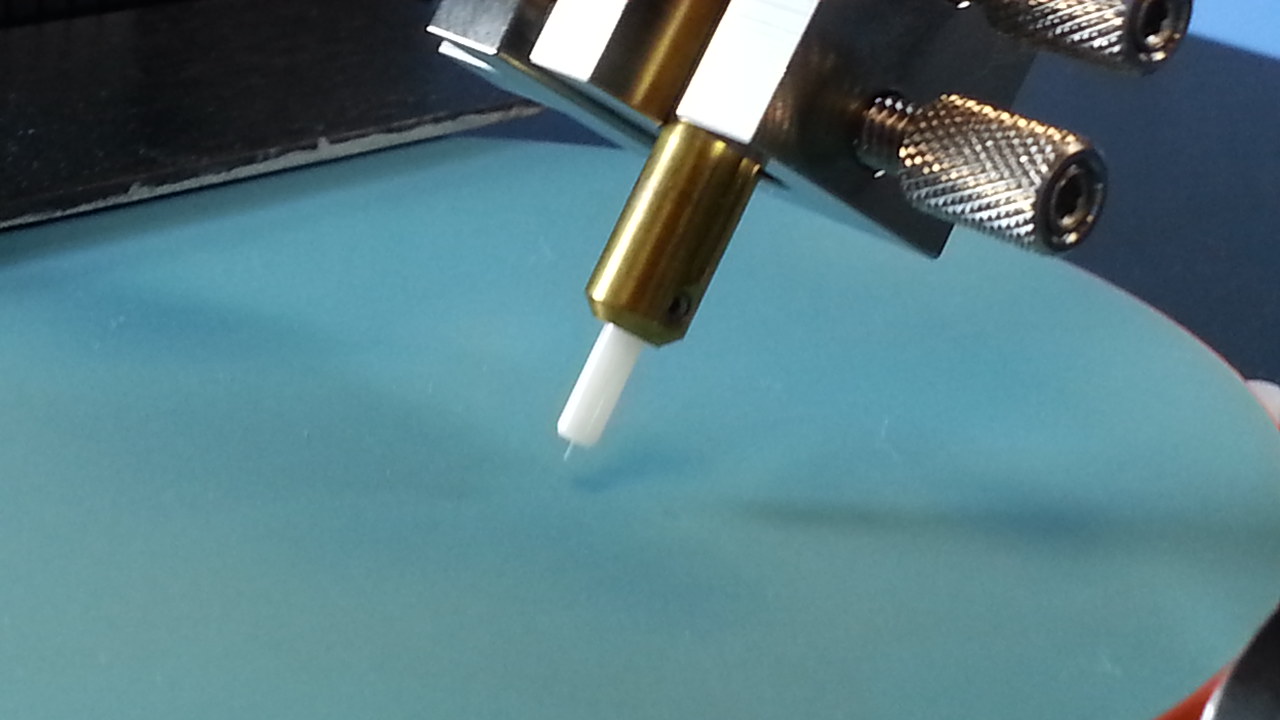

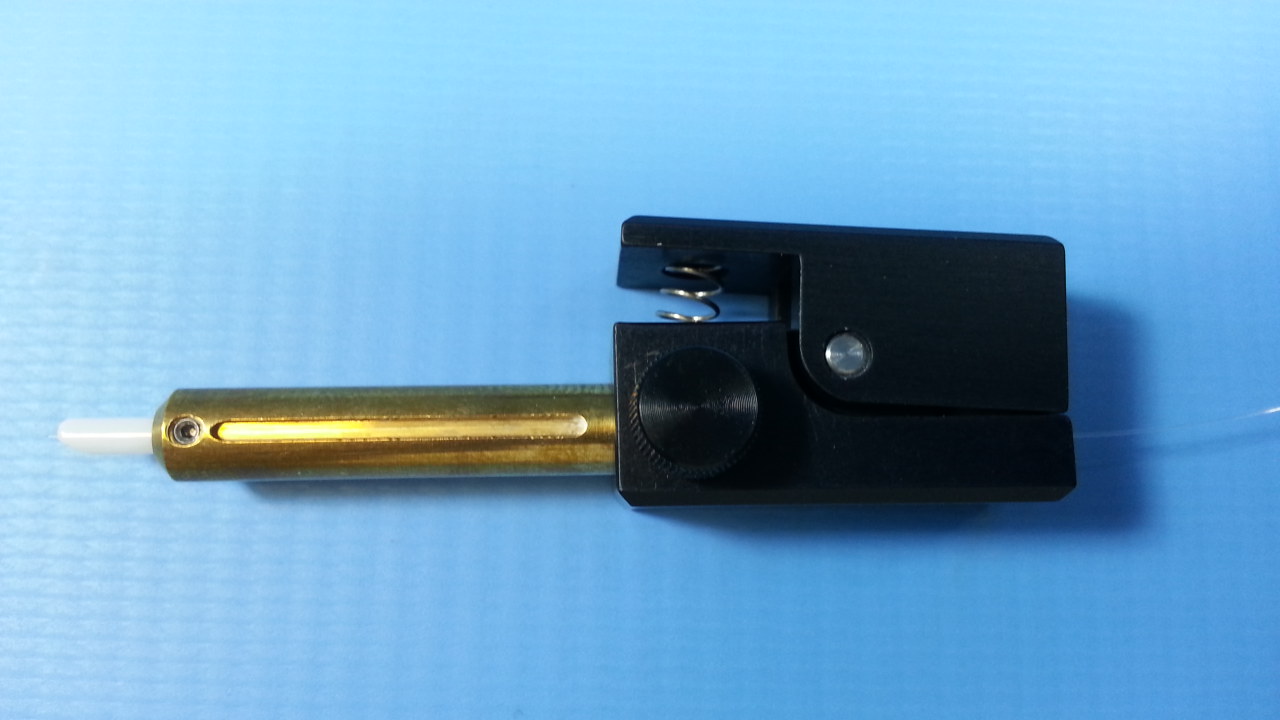

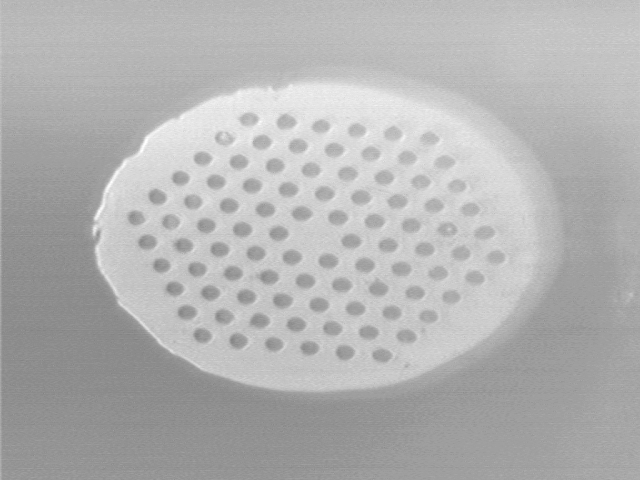

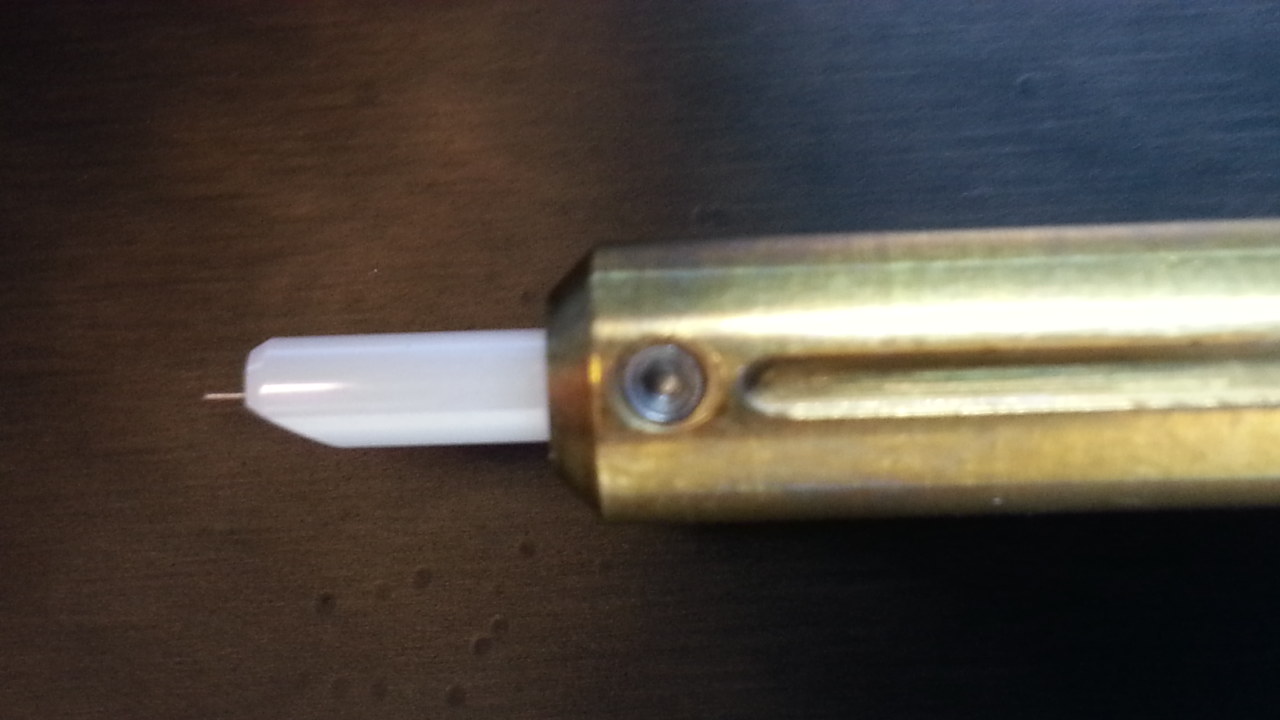

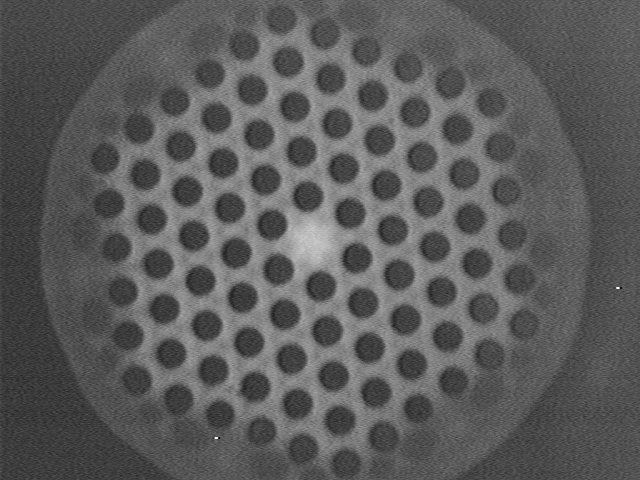

NOVA™'s flexible processing platform allows it to be configured for polishing bare fibers. Fibers can be polished at variable angles from 0 to 50 degrees using specialized workholders and adapters. A variety of fiber types from standard singlemode to PM, and sapphire to PCF can be processed. A quick swap-out of adapters allow the polishing of fiber diameters from 80um to >3mm.

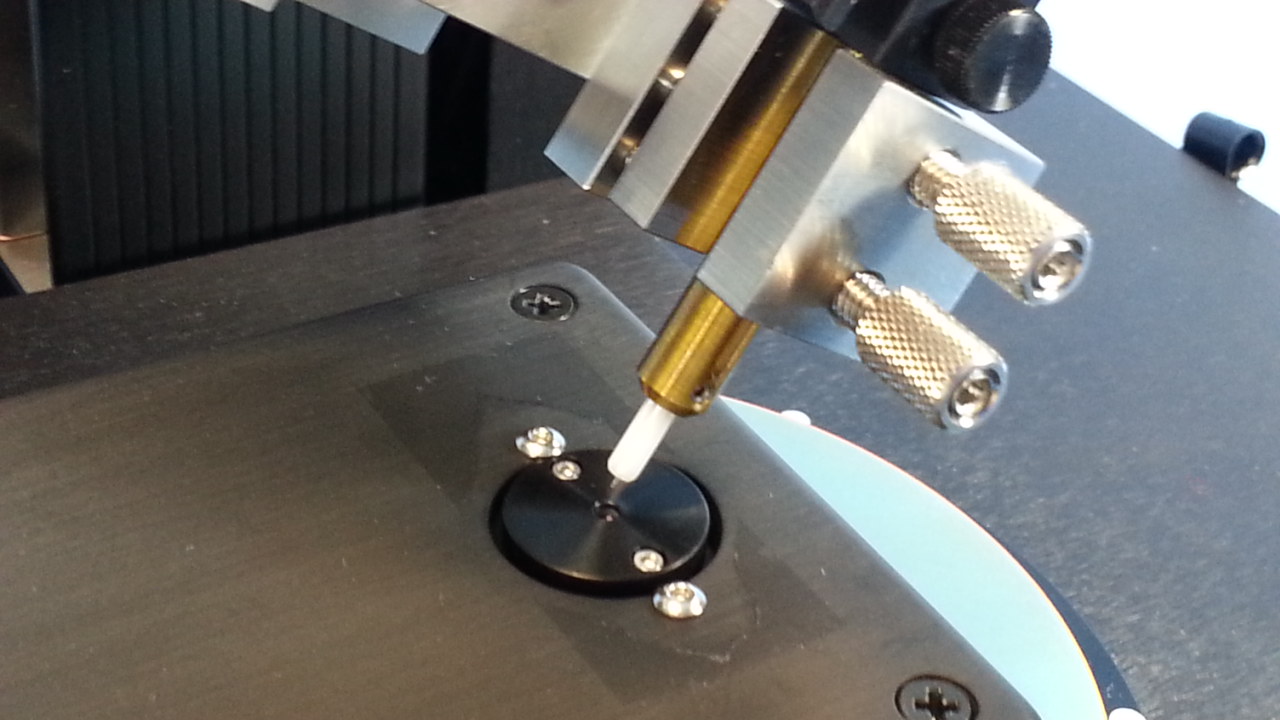

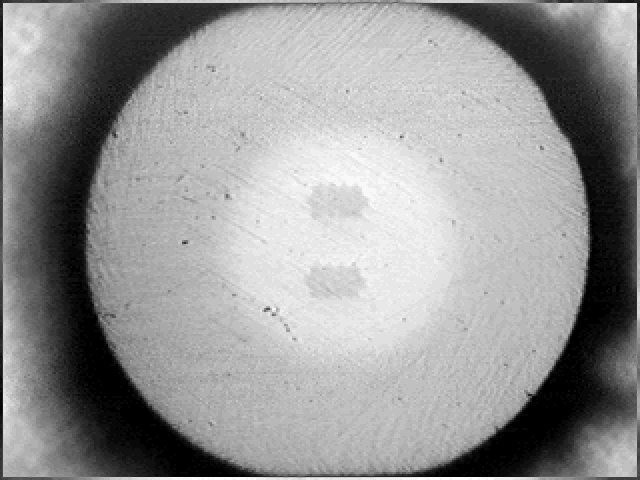

Optional video inspection systems monitor the polishing process and inspect the polished surface directly in NOVA™. In-line viewing minimizes material handling and is a means to confirm endface geometry before removing the fiber from the machine.

Conical and chisel fiber tips can also be formed using the Orbit™ Shaping Module (see below).

Starting at

$ 15,000

Data Sheet Get Quote

Read the Data Sheet

Multi-fiber coning

PM Fiber Alignment in NOVA Polisher

Polishing bare ribbon fiber

Video: Bare Fiber Polishing with NOVA

Programmed and Automated Bare Fiber Polishing

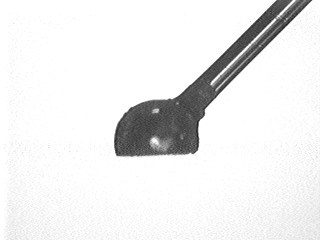

Ball Lens Polishing with NOVA

NOVA Optical Polishing System

Chisel Fiber Tip Polishing - Manual Control

Oct. 10, 2023, 3:04 p.m.

Hello, We currently have a Nova polishing system in our lab, but we do not have the adapters to enable bare fiber polishing. I was wondering if it's possible to purchase just the adapters for bare fiber polishing relevant to our application to adapt our current system. Thanks!

Yes, we offer bare fiber adapters for all Krell polishing machines. We will send you a quotation.

March 24, 2020, 6:38 p.m.

Can I buy the inspection equipment at a later date?

Yes, if you initially purchase just the base polisher, you can upgrade with the inspection modules at a future date.

March 23, 2020, 6:05 p.m.

I have a Krell Trig Polisher (see attached). What is the difference between Trig and NOVA?

Basically, NOVA is automated and programmable, whereas Trig is manually operated.

Feb. 4, 2020, 10:52 p.m.

How many bare fibers can be polished simultaneously by NOVA?

Up to 8.

NOVA™ workholders feature KrellTech’s patented independent suspension at each connector position for controlled pressure and uniform contact. Combined with NOVA’s Microfeed™ fixture advancement, connector “air-polishing” and epoxy removal can be performed directly in the machine.  Each position is optically aligned for optimal polish geometry using KrellTech’s patented process and calibration mechanism.  Connector types can also be mixed and matched in a single fixture.   NOVA’s versatility provides the ability to support the polishing of many photonic components.  A quick change-out of workholder fixtures provides processing capability for waveguides, optical chips, PLCs, lenses and fiber arrays.   Workholders utilize a unique holding mechanism that can secure a wide range of component dimensions.  The polishing angle is adjustable and custom fixtures can be fabricated for specialized applications.   Bare fibers can be polished at variable angles using specialized workholders and adapters. A variety of fiber types from standard singlemode to PM, and sapphire to PCF can be processed into wedge and chisel tip shapes.  A quick swap-out of adapters allow the polishing of fiber diameters from 80um to >3mm. Optional video inspection systems monitor the polishing process and inspect the polished surface directly in NOVA.   NOVA™ features an intuitive user interface for creating polishing programs. All parameters including cycle time, pressure and speed settings are easily inputted for all component types and desired surface geometries.   A unique “manual mode” allows the adjustment of polishing parameters in real-time during NOVA™ operation.  This feature streamlines process development efforts and facilitates easy and quick program creation and refinement.   SPECIFICATIONS   Operational Controller1                 Wireless tablet with Android                  operating system Polishing Pressure Programmable & automated. Linear displacement with micron positioning control. Polishing Speed Program selectable Cycling Timing Program selectable Polishing Motion Random orbital Polishing Routines                 (1) Programmable, step by step prompts                 (2) Microfeed™ controlled advancement                 (3) Manual mode with full process control Film Size                 4 inch diameter. Equipment Footprint & Weight             12” x 12” (305 x 305mm)                 25lbs 1Wired version available   Connector Performance Connector Support2                 All industry standard connectors                 Mil-spec termini and ferrules                 UPC & APC geometries Capacity                 Up to 8 components.  Selections                 be mixed & matched in same                 workholder fixture. Apex Offset      <50 microns, maximum <15 microns, typical Radius of Curvature             10-25 mm, 2.5 mm ferrules                 7-20 mm, 1.25 mm ferrules                 5-12 mm, APC ferrules Protrusion/Undercut3             50nm  to -120 n Back Reflection4           < -60 dB, UPC < -65 dB, APC Insertion Loss4             < 0.25 dB, typical Process Time5 Approximately 15 sec/connector   2 Polishing performance meets and exceeds Telcordia/IEC. specifications, and can be optimized for specific applications. 3 Dependent upon radius of curvature. 4 Optical performance may vary between connector manufacturers 5 Singlemode UPC/APC finish.     Waveguide Performance Component Support                 Waveguides, planar lightwave                 circuits, optical chips, fiber arrays Component Dimension Range6                 Width:   5mm to 25mm                 Thickness: 0.5mm to 5mm                  Length: >5mm Angle Repeatability                 +/-0.3 degrees (X/Y axis along edge) Adjustable Polish Angle Range6                 0 deg. (flat) to 45 degrees          6 Custom dimensions and angles available.     Bare Fiber Performance Fiber Types                 Singlemode, multimode, PM,                 plastic, PCF, chalcogenide,                 sapphire and specialty fibers Fiber Diameter             80um to >3mm Angle Range7   0 deg. (flat) to 50 degrees Angle Repeatability             ± 0.5 degrees, typical   7 Referenced off fiber diameter (i.e. 8° for APC style connector polish).  Custom angles available.                                                                                                    Inspection Options Real-Time Polishing Inspection 80x Magnification In-Line Surface Inspection             400x Magnification (standard)                 Coaxial Illumination Video Signal EIA/NTSC Compatible Switchable Source Geometry Measurements Software for angle, length and point-to-point measurements.
