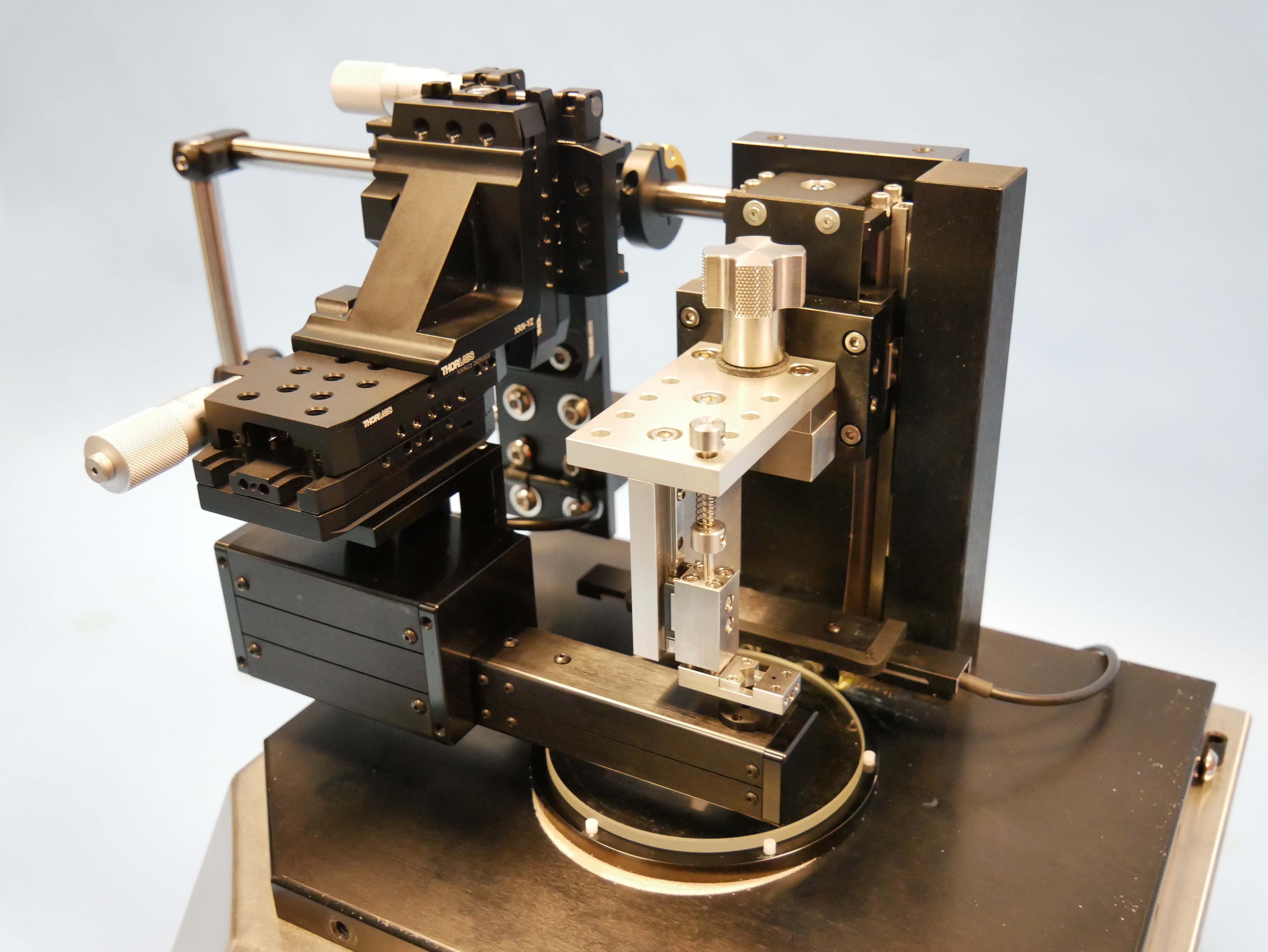

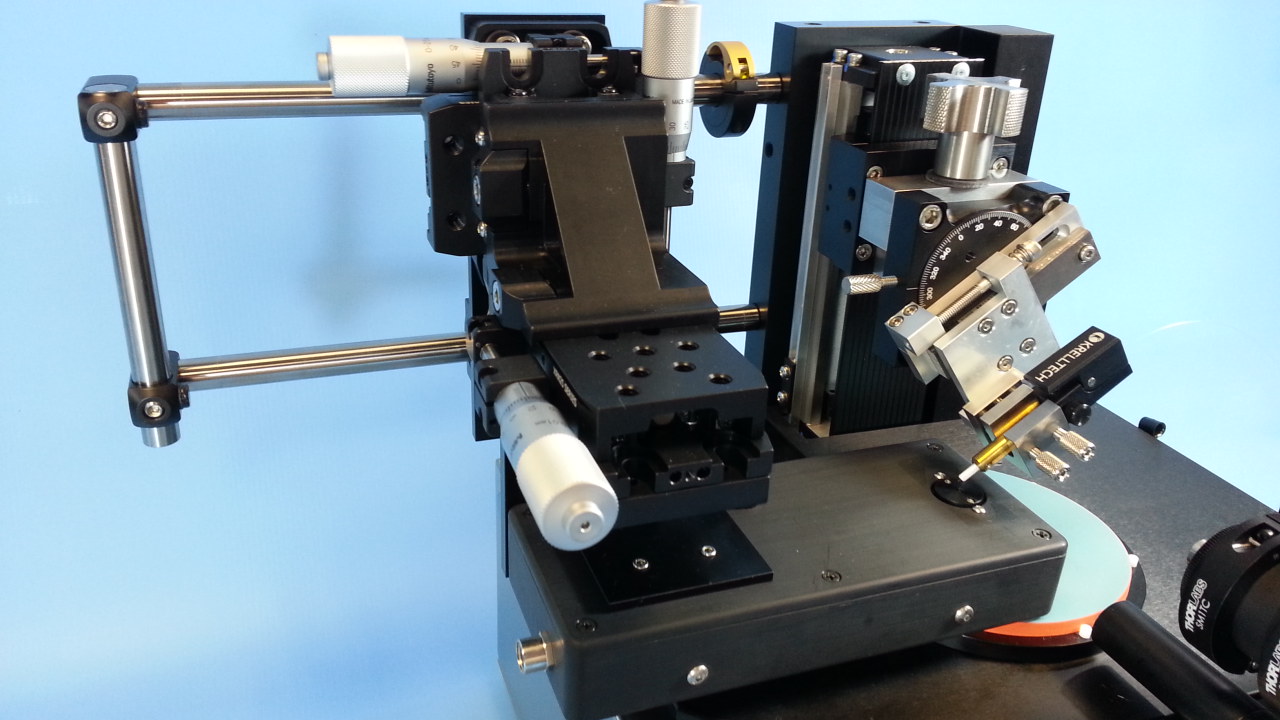

NOVA™ Surface Inspection Module

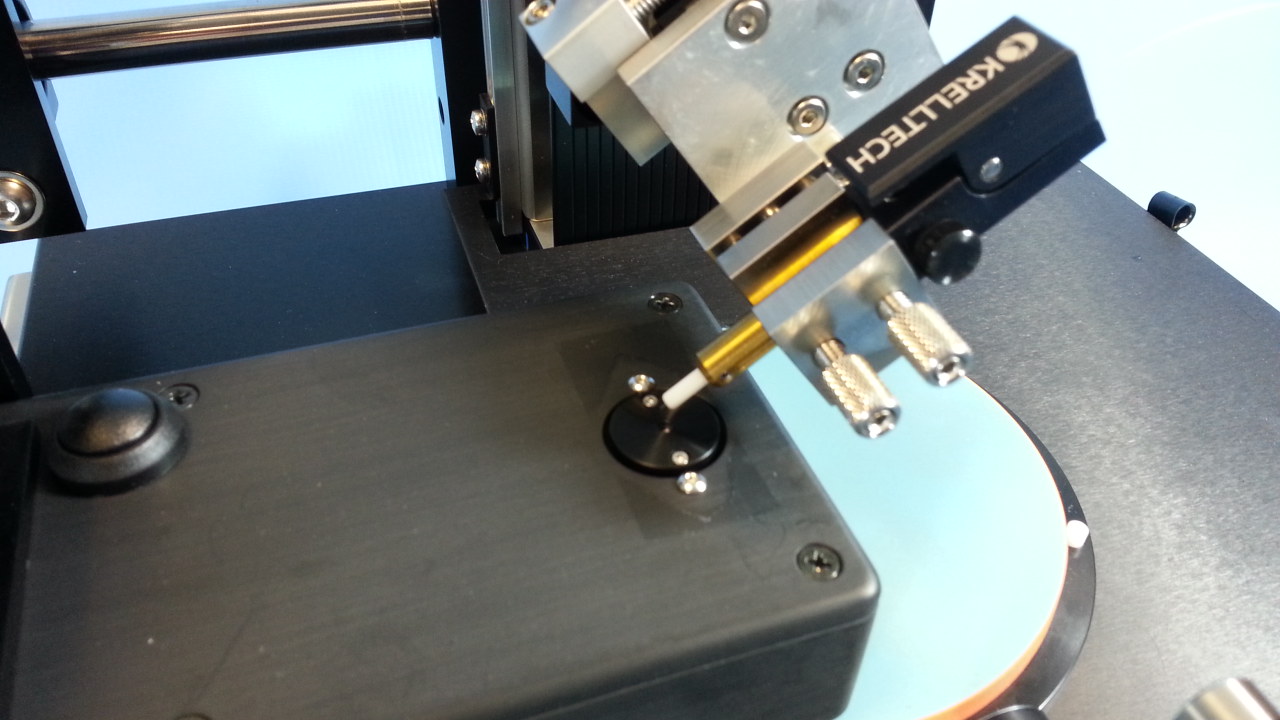

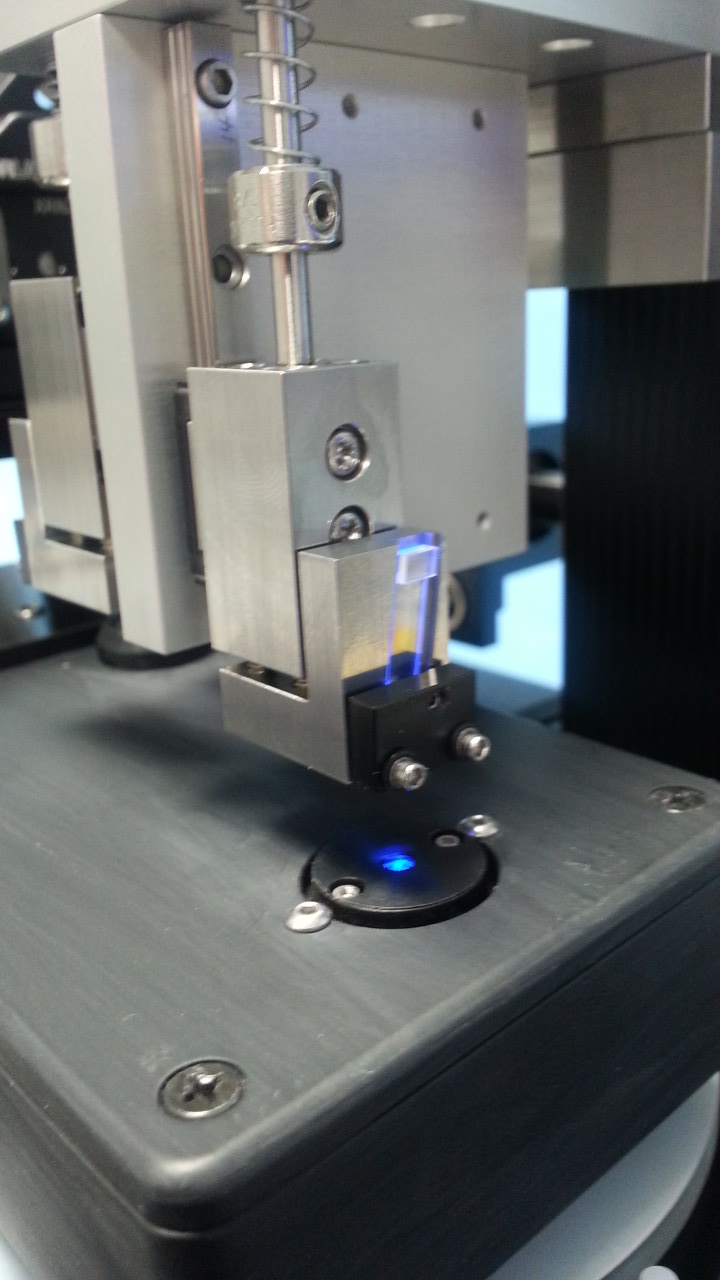

NOVA™'s Surface Videoscope allows the in-line inspection of polished surfaces while the component is still loaded in the polisher. This minimizes material handling and streamlines photonic production compared to the traditional process of transfering components to off-line inspection stations. Polishing and specification compliance can be determined in a single workcell.
Starting at
$ 7,500
Related Q&A:
April 15, 2020, 4:29 p.m.
Q
Can this be used for aligning PM stress members prior to polishing?
A
Yes. The fiber adapter is rotated until the stress rods are properly aligned.
April 6, 2020, 9:01 p.m.
Q
What is the magnification of this microscope?
A
200X and 400X options are available.
March 29, 2020, 6:29 p.m.
Q

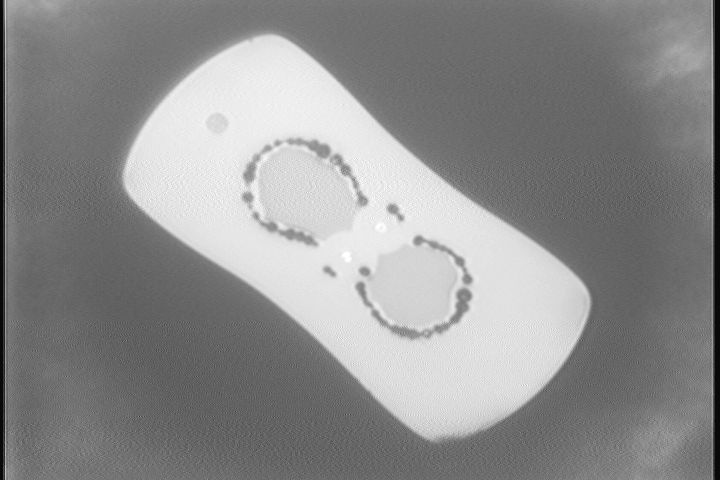

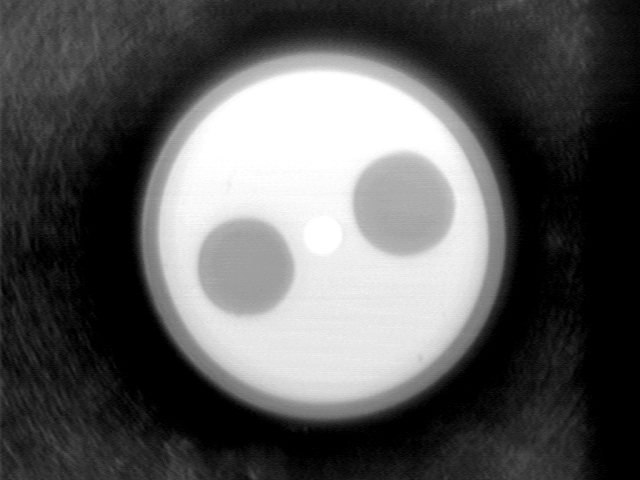

Can this inspection module be used to view PM stress members?
A
Yes. Panda, Tiger, and Bow tie PM stress members can be viewed and aligned for polishing with this inspection system.
March 26, 2020, 7:22 p.m.
Q
Is there measurement software that can be added to the inspection module?
A
Yes
March 26, 2020, 5:34 p.m.
Q
Do you offer high and low mag lens?
A
Yes!
Jan. 3, 2020, 5:43 p.m.
Q
Can an image bundle (see attachment) be inspected?
A
Yes. The NOVA inspection module is design so that the entire endface surface can be scanned across.
