Proton™ FTTX Polisher

Proton™ FTTX Polisher

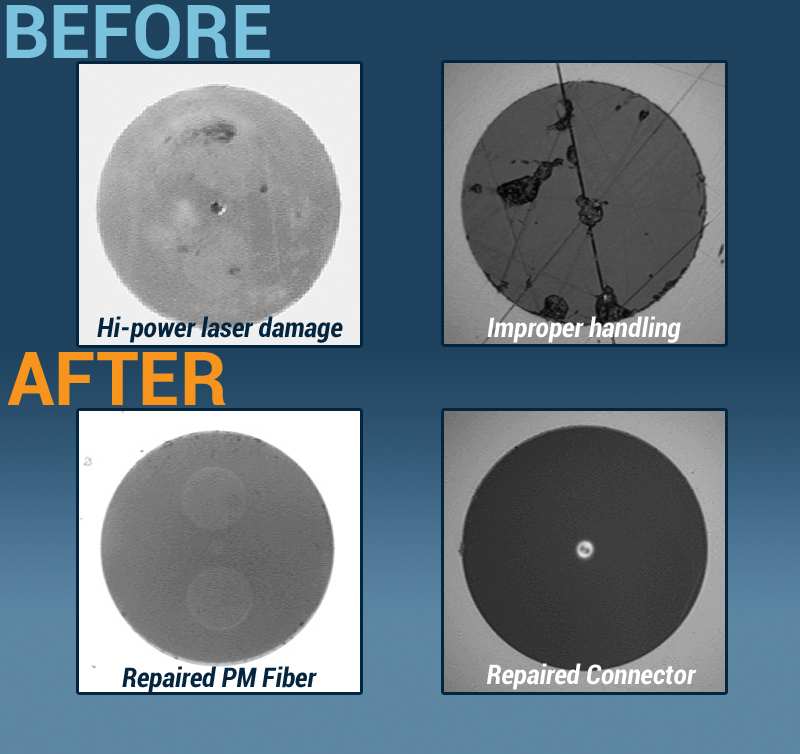

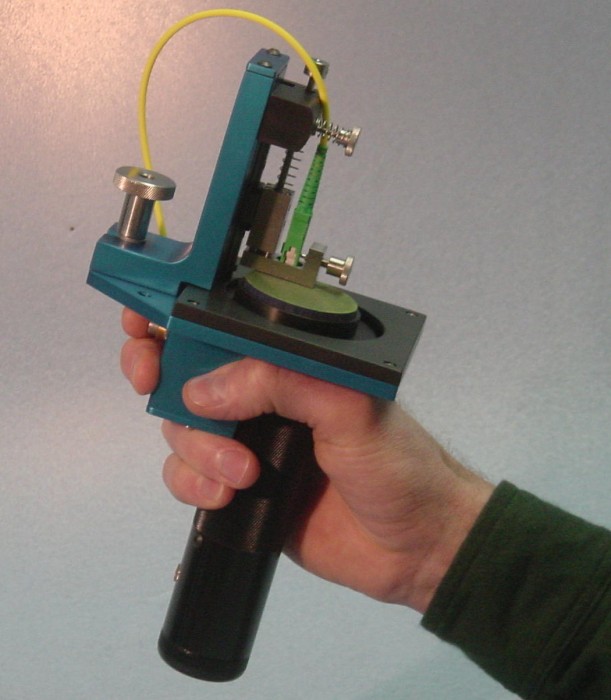

Proton™ consistently achieves Telcordia compliant, singlemode UPC and APC finishes in a handheld and battery operated package. Proton™ incorporates the same Independent Suspension (IS) and optically aligned workholder design found in Krell’s Scepter™ Mass Production Polishing Systems. Proton™ can polish connectors sideways and at most orientations, permitting access to cabling in the tight confines of datacom wire closets, LAN cross-connects, and CATV fiber nodes. Proton™’s portability lends itself to various military and aerospace applications and networks in which field-deployed optical connectors are terminated or require servicing and repair. Mil-spec components and termini including M29504, LuxCis, ARINC 801, ELIO, MC5, RSC etc.

Starting at
$ 4,500
Data Sheet Get Quote

Read the Data Sheet

Related Videos:

Proton FTTX Polisher: Operation Video

Proton Video Manual

Related Q&A:

No related questions yet.

Proton™ FTTX Field Polisher SINGLEMODE PERFORMANCE COMPLETE HAND-HELD OPERATION INDEPENDENT SUSPENSION WORKHOLDERS SUPPORTS ALL INDUSTRY STANDARD AND MIL-SPEC CONNECTORS/TERMINI TELCORDIA COMPLIANT SPECIFICATIONS AND FEATURES Optical Performance1 Polishing Performance2 Operational Back Reflection Apex Offset Connector Support < -60 dB, UPC < 50 microns, maximum All industry standard, < -65 dB, APC < 15 microns, typical Mil-spec and custom Insertion Loss Radius of Curvature connectors/termini < 0.25 dB, typical 10-25 mm, 2.5 mm ferrules Process Time4 7-20 mm, 1.25 mm ferrules New termination: 2 min. 1 Optical performance may vary between connector 5-12 mm, APC ferrules Connector repair: < 1 min. manufacturers. Undercut/Protrusion3 Polishing Pressure 0 to -50 nm Adjustable, linear displacement 2 Cycle Timing Polishing performance meets and exceeds Telcordia specifications, and can be optimized for specific applications. User adjustable 3 Dependent upon radius of curvature Polishing Motion Random orbital Production performance is now available in field environments in the form of Power Proton. Though portable and battery operated, Proton consistently 9 volt alkaline achieves singlemode UPC and APC finishes. Proton incorporates the same AC adapter 5 Independent Suspension (IS) and optically aligned workholder design found Weight in Krell’s mass production Scepter Polishing System. 1.8 lbs 4 Singlemode UPC/APC finish. VERSATILE Proton has been conceived for true hand-held operation. Connectors can be loaded, polishing pressure set and films changed-out without the need of a table, workbench or external support. Proton can polish connectors sideways and at most orientations, permitting access to cabling in the tight confines of wire closets, cross-connects and fiber nodes. PORTABLE This unique design makes Proton the ideal choice for all field networks such as Fiber to the Home/Premise (FTTX), shipboard/aircraft, CATV and LAN. Whether the application is a new installation, connector repair or even R&D efforts, Proton provides the required performance. Proton™ workholders feature Independent Suspension (IS) for 5 Patent No. 7,070,338B1. Specifications are subject to change without notice. Rev. 2, 1/13 controlled pressure and uniform contact with the polishing surface. The workholder is also optically aligned. for optimal polish geometry. krell technologies, inc. · tel: (732) 617-7091 · sales@krelltech.com · www.krelltech.com
