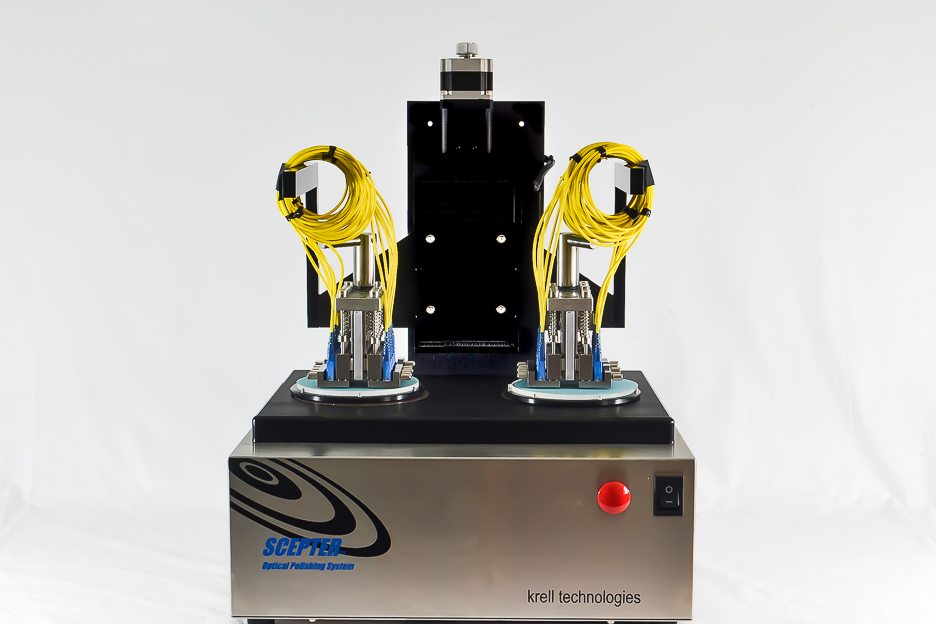

Scepter X2 Dual Position Connector Polisher

Scepter X2 Dual Position Connector Polisher

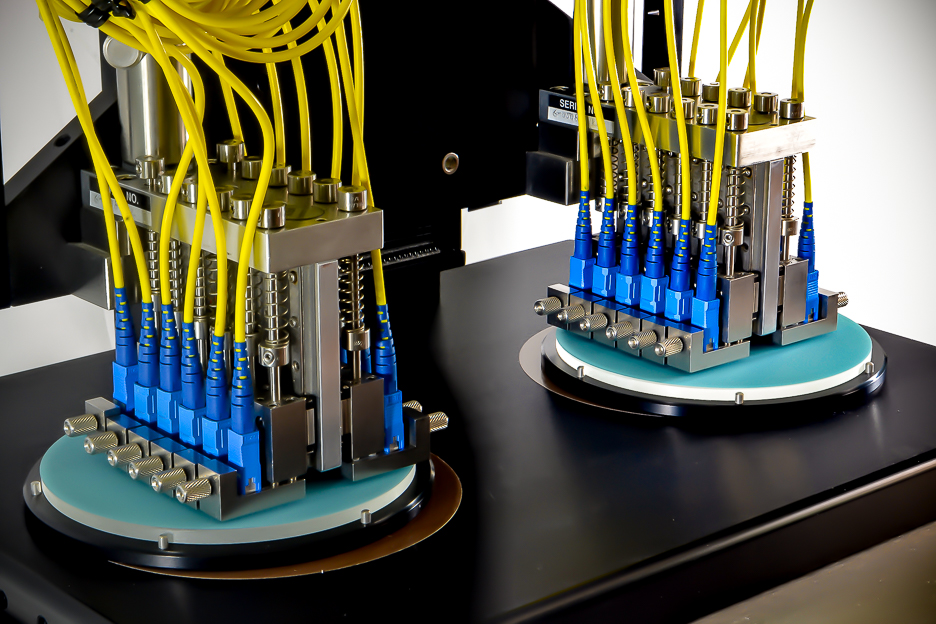

Connector polishing capacity has been doubled with the Scepter X2 System. X2 has the same footprint as KrellTech's original Scepter connector polisher, but now supports two polishing fixtures. Up to 24 connectors, Mil-spec termini and ferrules can be processed simultaneously using KrellTech's patented Independent Suspension workholders. If two High-Capacity Workholders are used, 58 components can be processed during the same polishing session. As with all KrellTech polishers, optical performance and surface geometry exceed all industry standards including Telcordia and IEC.

Starting at
$ 35,000
Data Sheet Get Quote

Read the Data Sheet

Related Videos:

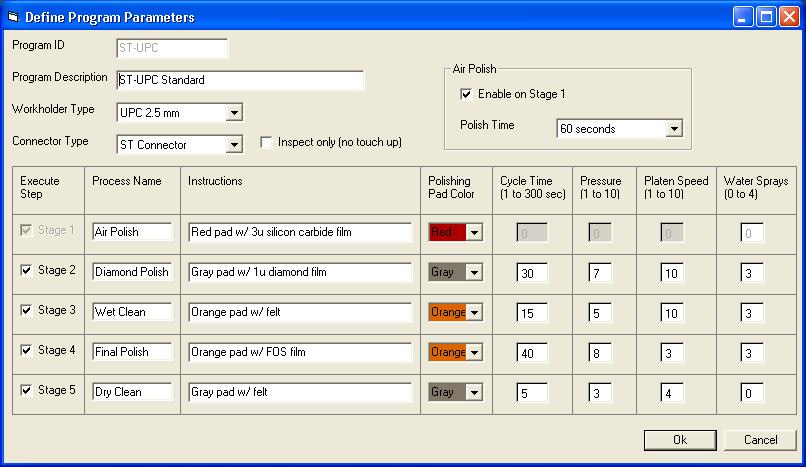

Scepter Programming Video

Polishing angled, singlemode MT, MPO, MTP connectors

Related Q&A:

No related questions yet.

Scepter X2™ Automated Connector Polishing System DUAL POSITION OPTICAL POLISHING DOUBLES CAPACITY OF STANDARD SCEPTER™ EXTERNAL PC CONTROL WITH MICROFEED™ INDEPENDENT SUSPENSION WORKHOLDERS SUPPORTS ALL INDUSTRY STANDARD CONNECTORS / MIL-TERMINI / FERRULES AIR POLISHING IN MACHINE TELCORDIA COMPLIANT SPECIFICATIONS AND FEATURES Polishing Performance 1 Operational Apex Offset Connector Capacity <50 microns, maximum Optical Performance3 24 connectors using Independent <15 microns, typical Suspension workholders Back Reflection 58 connectors with high capacity Radius of Curvature < -60 dB, UPC 10-25 mm, 2.5 mm ferrules workholders < -65 dB, APC Connector Support 7-20 mm, 1.25 mm ferrules 5-12 mm, APC ferrules Insertion Loss All industry standard, MIL-spec and 2 < 0.25 dB, typical custom connectors/termini Undercut/Protrusion 0 to -100 nm 3 Optical performance may vary between connector manufacturers. Process Time4 Approximately 3 to 8 sec/connector 1 Polishing performance meets and exceeds Telecordia specifications, and can be optimized for specific applications. Polishing Pressure 2 Dependent upon radius of curvature. Programmable, sub-micron, automated, linear displacement Polishing Speed Program selectable Cycling Timing Program selectable Polishing Motion Random orbital 4 Singlemode UPC finish. Scepter workholders feature Independent Suspension (IS) at each connector position for controlled pressure and uniform contact with Scepter features an intuitive user interface for creating polishing programs. All the polishing surface. IS permits air polishing polishing parameters including cycle time, pressure and speed settings are easily while maximizing film life. Each position is inputted for all connector types and desired surface geometries. optically aligned for optimal polish geometry using KrellTech’s patented technology. Specifications subject to change without notice Rev. 1, 4/17 krell technologies, inc. · tel: (732) 775-7355 · sales@krelltech.com · www.krelltech.com
