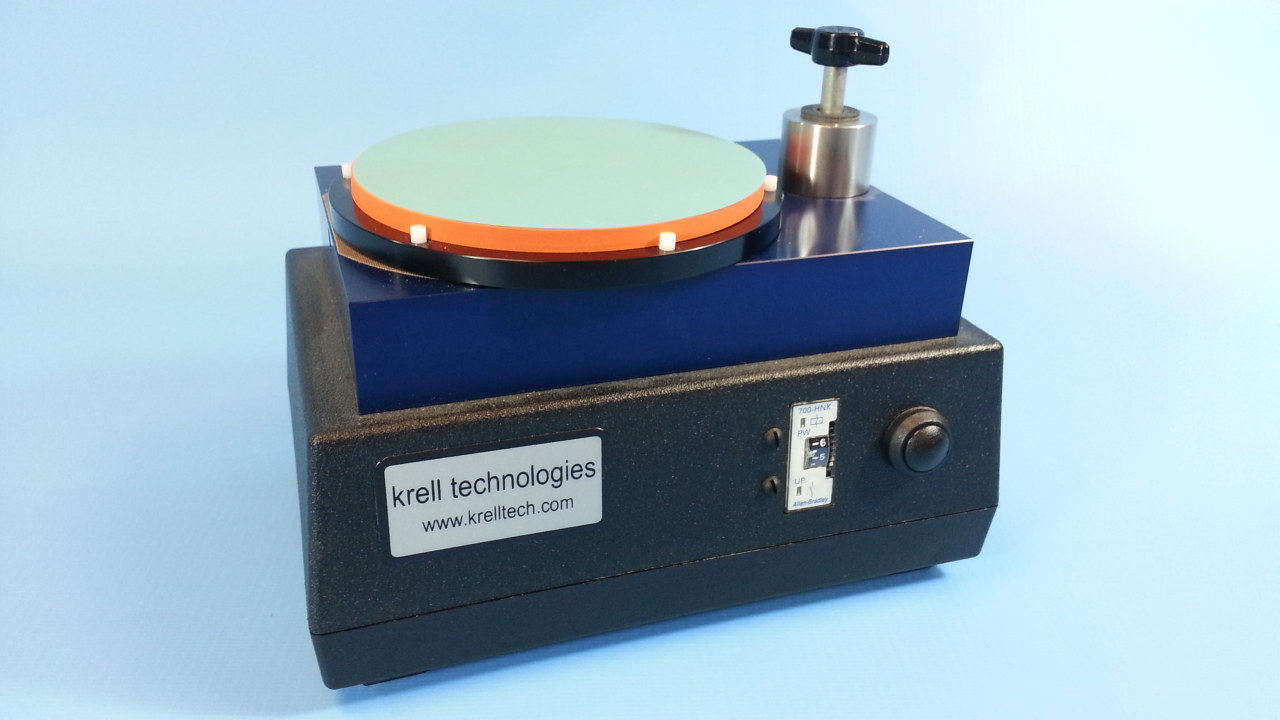

SpecPro™ Connector Polisher

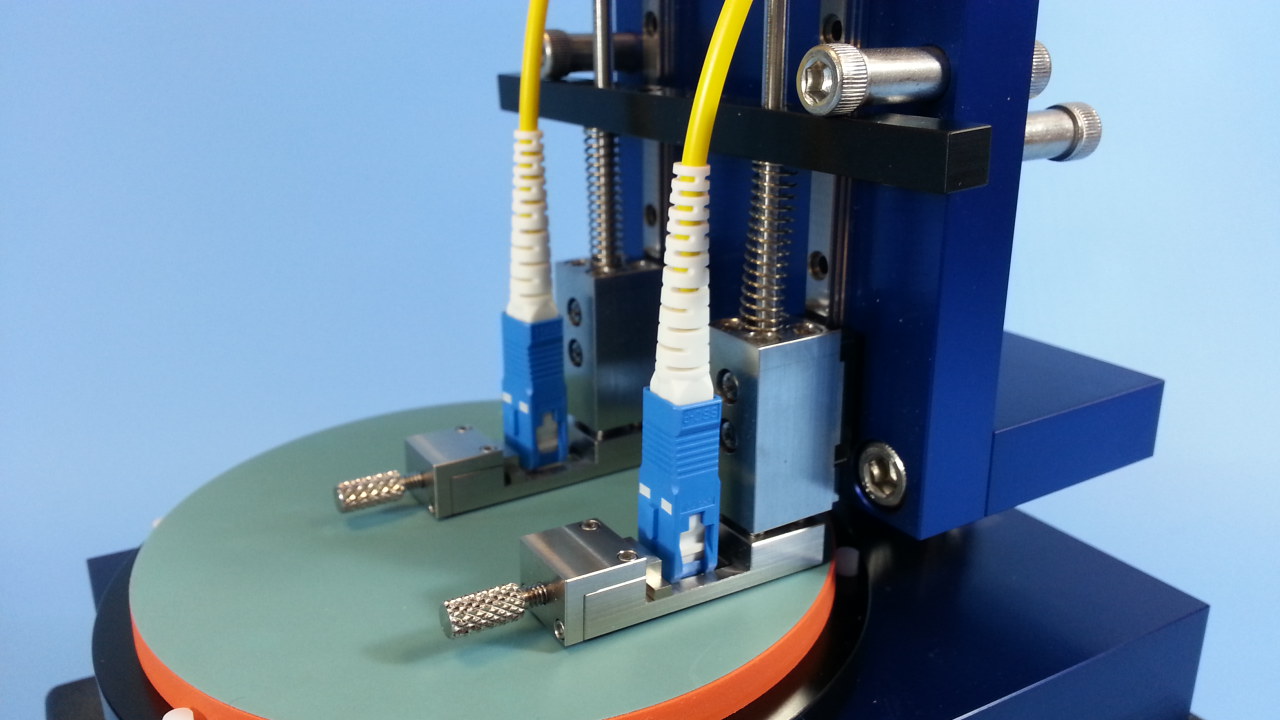

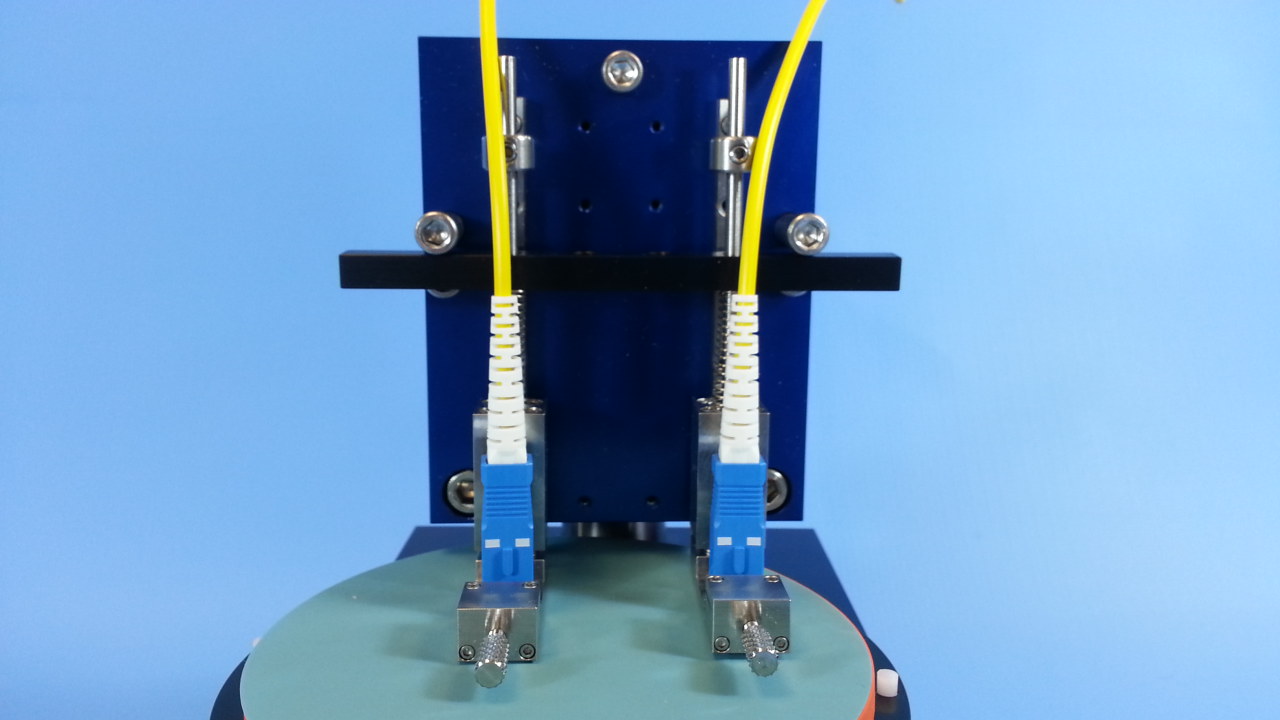

SpecPro™ is designed to yield singlemode performance for R&D and medical applications, low volume cable assembly production and field environments. Up to four components can be simultaneously polished, including industry standard connectors, multifiber ferrules, MIL-spec termini, optical bundles, endoscopes and bare fibers. An integrated air-polish routine is available, and SpecPro is also ideal for repairing and retro-polishing damaged connectors. SpecPro™ incorporates Krell’s unique independent suspension feature for more uniform and consistent polishing at each connector position. Krell’s SpecVision™ Video Inspection System can also interface with SpecPro™ for in-line viewing of fiber finishes. In addition to its compact and portable packaging, SpecPro™ features both AC and battery operation.




Starting at
$ 3,900
March 31, 2022, 9:07 p.m.
Q
How do you maintain the height of the platen during spinning? Basically my concern is if the platen is wobbling or randomly going up and down, it will damage the fiber. Thanks!
A
Our rotating platen (in which polishing film is placed on a glass disk/rubber pad) lies directly upon the polisher baseplate. Both consist of aluminum that is ground to a high level flatness tolerance. Additionally, a quality control run-out measurement inspection(i.e. up/down movement) is perform
Nov. 3, 2021, 3:49 p.m.
Q
What’s the maximum cycle time?
A
The SpecPro's digital timer is adjustable from 6 to 60 second intervals. An option is available for continuous operation controlled by an "on/off" switch.
Nov. 3, 2021, 3:49 p.m.
Q
Does it come with the Universal UPC workholders?
A
All workholders are individually purchased for the base SpecPro. We will send a quotation for your UPC polishing application.
March 19, 2021, 7:40 p.m.
Q
We're wondering if you have an attachment for the SpecPro polisher to polish FC/APC fibers? Right now we use it on FC/PC fibers and were considering making a switch.
A
Yes. We offer an interchangeable workholder fixture for FC/APC connectors. We will send a quotation.
Feb. 24, 2021, 7:28 p.m.
Q
I like this machine but it appears to be for SC/UPC style connectors. Is there a fixture for this 4 fiber polisher designed for doing the SC/APC connectors? With an inspection process while it is still mounted in the fixture?
A

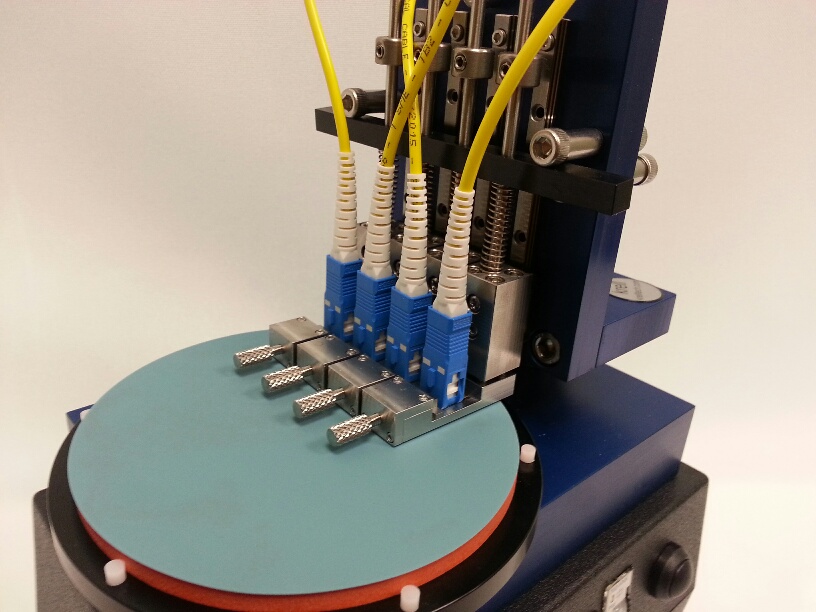

SpecPro is capable of polishing up to 4 connectors simultaneously. This includes SC/APC. We will generate a quotation for this workholder fixture.
Aug. 7, 2020, 5:34 p.m.
Q
hello, is there a part number or SKU # for the SpecPro bare fiber/connector polisher for ordering purposes
A
Yes. The part number for the SpecPro base polisher is "SP4L". Please note, this will require either a connector or bare fiber workholder fixture.
April 27, 2020, 12:01 p.m.
Q
How is the polishing time controlled?
A
The SpecPro polisher has a built-in digital timer that can be adjusted from 1 to 60 second cycles.
April 14, 2020, 6:39 p.m.
Q
Is the polishing time adjustable?
A
Yes, from 1 to 60 seconds using the digital timer.
April 6, 2020, 8:37 p.m.
Q
Are there any inspection options with SpecPro?
A
Yes, the SpecVision videoscope engages with SpecPro workholders for connector surface inspection.
April 2, 2020, 3:08 p.m.
Q
What type of battery powers the SpecPro?
A
Standard 9 volt batteries. It also operates AC power using an adapter (included).
March 31, 2020, 8:29 p.m.
Q
Attached is a picture of an inspection device being used with SpecPro. What is the name of this inspection module?
A
That is our SpecVision (SV7) camera.
March 31, 2020, 8:21 p.m.
Q
I attached some films.. Are these compatible with the SpecPro?
A
It looks like they are all 4" films and pads, so yes.
March 30, 2020, 9:58 p.m.
Q
I have a Universal UPC Workholder. What else do I need for polishing bare fibers?
A
Basically you will required a Bare Fiber Adapter and Adapter Coupler for each polishing position.
March 12, 2020, 6:35 p.m.
Q
What is the range of the digital timer?
A
1 to 60 seconds per cycle.
Feb. 27, 2020, 4:41 p.m.
Q
Is the pressure adjustable with SpecPro?
A
Yes, there are 3 user selectable pressure settings.
Jan. 3, 2020, 4:43 p.m.
Q
Can SpecPro polish the component illustrated in this attachment?
A
Our Universal UPC workholder will polish Elio termini.

SpecPro Text1 ™ Automated Text2Fiber Optic Polisher AUTOMATED AND MANUAL MODELS POLISHES ALL CONNECTORS AND MIL-SPEC TERMINI TO TELCORDIA COMPLIANCE PROCESSES UP TO 4 CONNECTORS BARE FIBER POLISHING INTERGRATED AIR-POLISH ROUTINE INDEPENDENTLY SUSPENDED AND OPTICALLY ALIGNED WORKHOLDERS IN-LINE VIDEO INSPECTION PORTABLE WITH AC/BATTERY OPERATION SPECIFICATIONS AND FEATURES Optical Performance1 Polishing Performance2 Operational Back Reflection Connectors Connector Support3 < -55 dB, UPC Most industry standard Apex Offset connectors/ferrules/Mil-termini < -65 dB, APC < 50 microns including UPC/APC versions, Insertion Loss Radius of Curvature < 0.25 dB, typical waveguides, fiber bundles,etc. 1 Optical performance may vary between connector 10-25 mm, 2.5 mm ferrules Workholder Types manufacturers. 7-20 mm, 1.25 mm ferrules Manual and automated microfeed 5-12 mm, APC ferrules SpecPro™ is designed for the cost- Polishing Films Undercut/Protrusion 4 inch diameter effective, high-speed polishing of bare 0 to -50 nm fibers and optical connectors. Polishing Motion Bare Fibers Random orbital Workholders are available that enable the automated air polishing of Fiber Diameters Timer 80 μm to > 1.5 mm using adapters User adjustable, digital cycle timing connectors. Automation yields superior endface quality over the 2 Polishing performance can be optimized for specific Video Inspection traditional, off-line manual air polish. applications. Workholders can interface with the SpecPro™ is ideal for low volume SpecVision™ for in-line viewing manufacturing and field applications fiber finishes providing the identical performance Power found in larger production polishers. AC adapter/9 volt battery Size and Weight 7”x 4.5” footprint 4.5 lbs Krell’s SpecVision™ In-line Videoscope can Automated workholders gradually advance Universal UPC workholders are engage with SpecPro™ to inspect connector ferrules to polishing surface for fiber denub available that support all and fiber surface finishes while the component and epoxy removal. Bare fibers can also be connectors/termini with ferrule is loaded in the polisher. polished using the same control mechanism. diameters between 1.25 to 3.2mm. Specifications subject to change without notice Rev. 1, 6/13 krell technologies, inc. · tel: (732) 617-7091 · fax: (732) 617-7092 · www.krelltech.com
