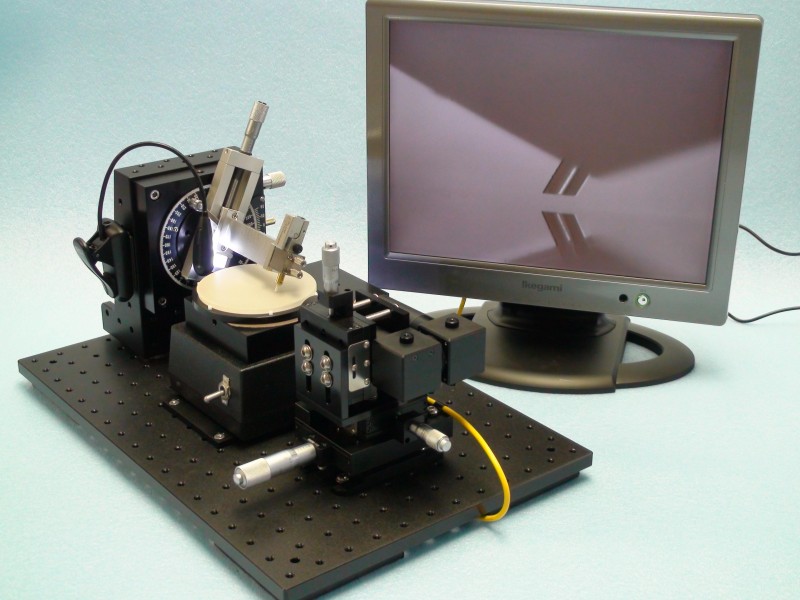

Trig™ Lite Fiber Polisher

Trig™ Lite Fiber Polisher

Trig™ Lite is scaled-down version of the complete Trig™ system, with all features except for surface inspection. Fiber adapters are removable, and can be transferred to an independent microscope station for inspection. As production throughput demands increase, Trig™ Lite can be upgrade to a standard Trig™ Polishing System.

Starting at
$ 16,500
Data Sheet Get Quote

Read the Data Sheet

Related Videos:

Trig Bare Fiber Polisher: Operation Video

Related Q&A:

No related questions yet.

Radian™ & Trig LT™ Bare Fiber Polishers Radian™ VARIABLE ANGLE CONTROL Trig LT™ REAL-TIME VIDEO MONITORING (Trig LT™) ADAPTERS FOR VARIOUS FIBER TYPES PRODUCTION AND R&D APPLICATIONS COST-EFFECTIVE PROCESSING SPECIFICATIONS AND FEATURES Inspection Performance (Trig LT™) Polishing Performance Real-Time Inspection Angle Range1 80x Magnification Radian™: 0 (flat) to 45 degrees Video Signal Trig LT™: 0 (flat) to 50 degrees EIA/NTSC Compatible Angle Repeatability Video Interface ± 0.5 degrees, typical BNC Connectors Polishing Motion Random Orbital Polishing Speed User Adjustable Film Size 4 inch Diameter 1 Referenced off fiber diameter (i.e. 8° for APC style connector polish) Trig LT™ provides a video inspection module to offer real- time monitoring of the fiber during the polishing process. Radian™ and Trig LT™’s precision rotary stages can be continuously adjusted to form a wide range of fiber tip angles. Specifications subject to change without notice Rev. 2, 1/13 krell technologies, inc. · tel: (732) 617-7091 · fax: (732) 617-7092 · www.krelltech.com
