Universal Connector Fixtures

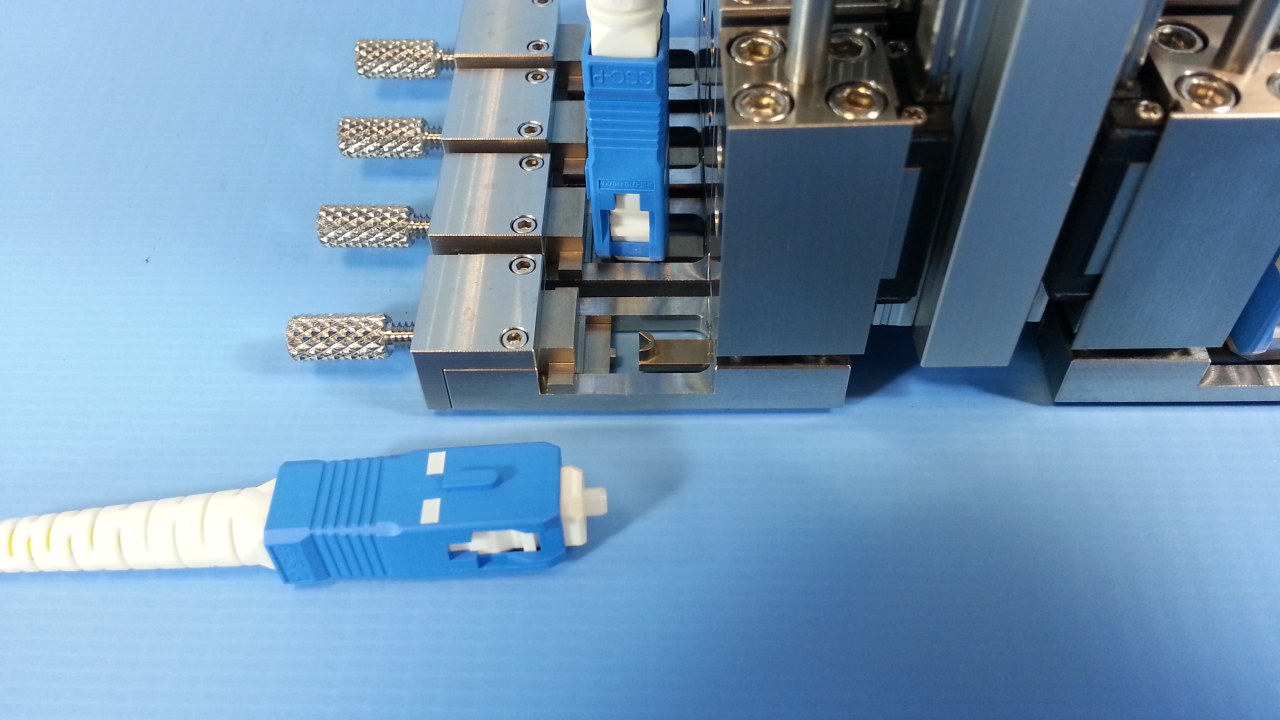

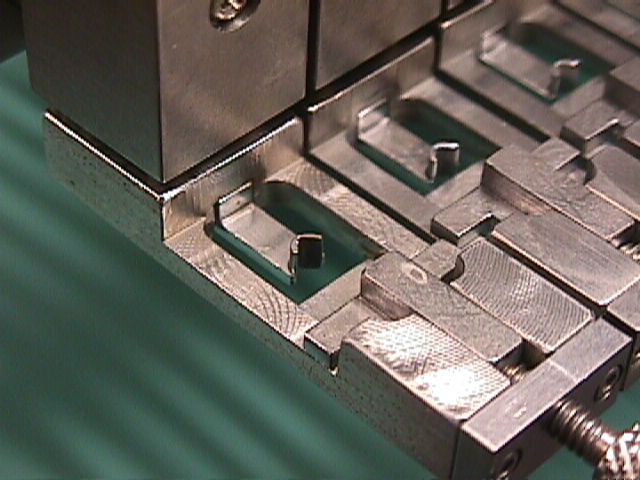

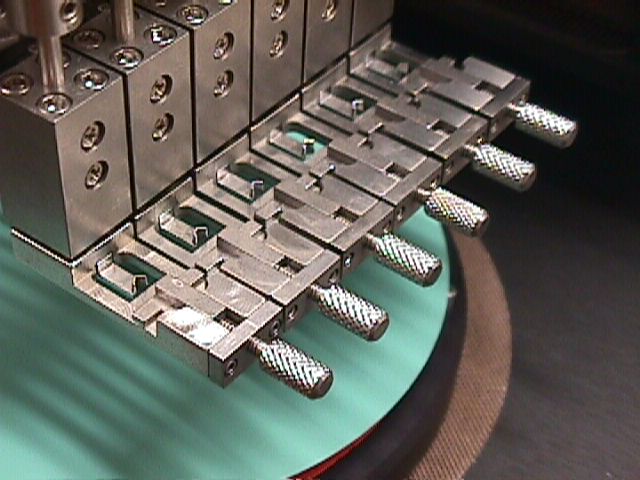

KrellTech’s unique Universal Workholder supports all UPC connectors, ferrules, and Mil-spec termini in a single polishing jig. Components supported include SC, FC, ST, LC, MU, E2000, SMA 905, SMA906, M29504, LuxCis, ARINC 801, ELIO, MC5, RSC and many others.

April 15, 2020, 3:31 p.m.
Q
Can a fiber terminated in a stainless steel tube or medical cannula be polishing with this workholder jig?
A
Yes, but the tube diameter must be between 1mm and 3.2mm.
April 3, 2020, 5:44 p.m.
Q
I currently have a 4 position UVG Workholder used for NOVA, but would like to upgrade to 8 positions eventually. Is this possible to do?
A
Yes, you will just need to send your current workholder in to be upgraded, re-aligned and re-calibrated. This will take about a week upon receipt of workholder.
March 26, 2020, 6:45 p.m.
Q
Can this polish FC connectors?
A
Yes
March 24, 2020, 7:23 p.m.
Q
How often will this Workholder need to be re-aligned/calibrated?
A
Unless test data begins to deviate, scheduled calibration is not require.
March 24, 2020, 7:23 p.m.
Q
Do you have an angled version of the Universal Workholder fixture?
A
Yes. Please refer to attached data sheet.
March 23, 2020, 9:30 p.m.
Q
Does this polishing jig support MTP ferrules?
A
No, but Krell does offer MT, MTP, MTx workholder jigs.
Jan. 3, 2020, 4:43 p.m.
Q
Will this polishing fixture support the attached termini?
A
Yes. This workholder fixture will support all UPC style components that have a ferrule diameter range from 1mm to 3.2mm.
Dec. 4, 2019, 5:52 p.m.
Q
Does this polishing fixture support Elio termini?
A
Yes, the Universal Workholder supports Elio, and all UPC style Mil-Spec termini.

UNIVERSAL UPC WORKHOLDER SUPPORTS UPC COMPONENTS:  CONNECTORS  BARE FERRULES  MIL-SPEC TERMINI / CONTACTS INDEPENDENT SUSPENSION OPTICALLY ALIGNED FIXTURE TELCORDIA COMPLIANT IN-LINE VIDEO INSPECTION POLISHES UP TO FOUR CONNECTORS INDEPENDENT SUSPENSION WORKHOLDERS SPECIFICATIONS AND FEATURES SUPPORTS UPC/APC/MT STYLE Polisher Compatibility CONNECTORS AND FERRULES Capacity (polisher dependent) Scepter™ Up to 12 components BARESpecPro™ FIBER POLISHING Rev™ Component Engagement Proton™ Precision v-groove mechanism IN-LINE VIDEO INSPECTION AVAILABLE Ferrule Diameter Support UPC Component Support Standard 1mm to 3.2mm Connector Capacity Connectors Modified fixtures available for smaller diameters SC, FC, ST, LC, MU, E2000, F3000, SMA, ferrules, bare fiber adapters Mil-spec Termini M29504 (1, 1.25, 1.6, 2mm), TFOCA, ARINC 801 EXAMPLES 2.5mm 1.00mm 2.0mm 1.25mm 1.6mm Rev.3, 1/13 krell technologies, inc. · tel: (732) 617-7091 · fax: (732) 617-7092 · www.krelltech.com
