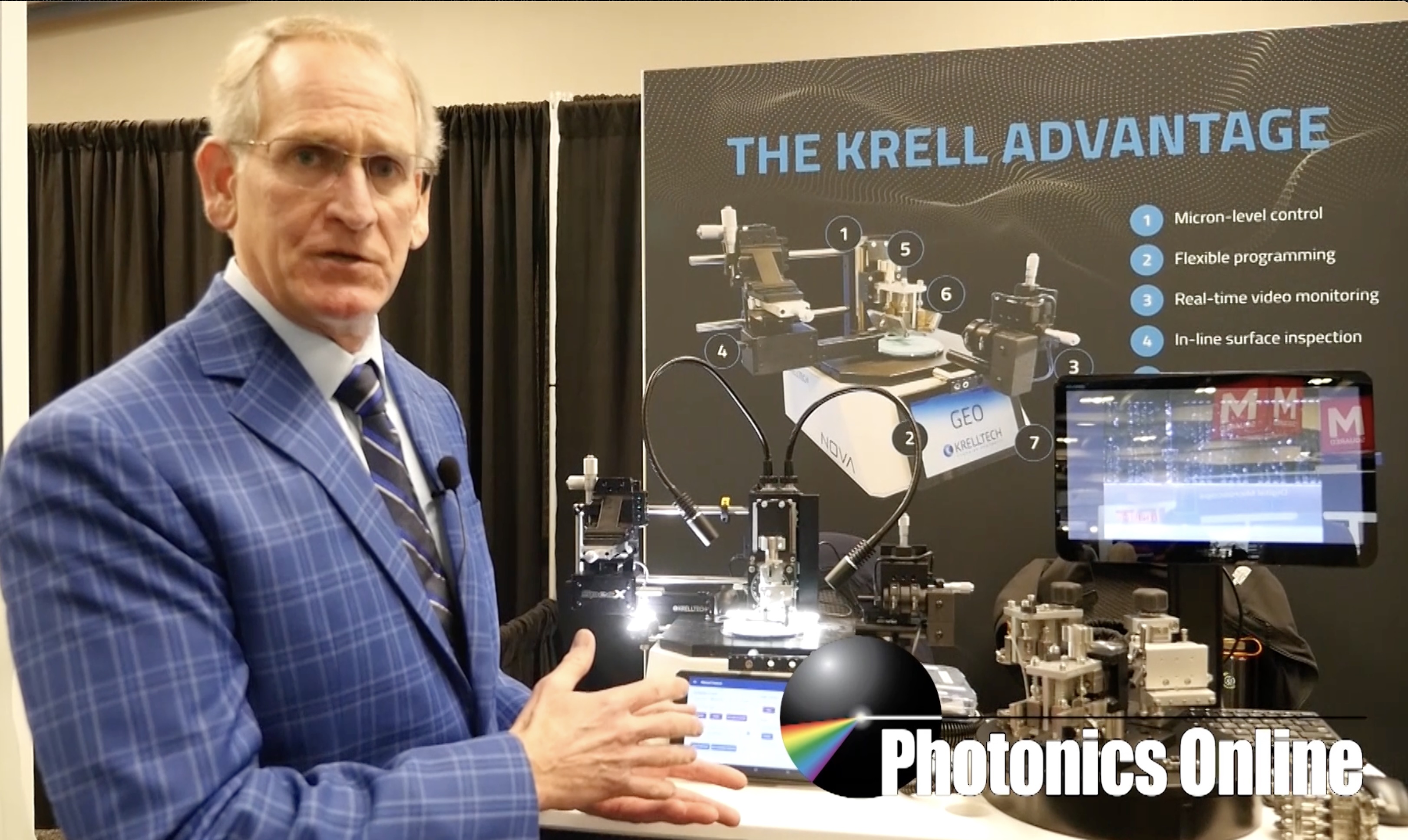

Krell Technologies President Al Cheswick recently spoke with Photonics Online at the Photonics West trade show, where he introduced KrellTech’s advanced line of photonic polishing and shaping systems with built-in inspection. The highlight of the conversation was the NOVA™ system—a highly configurable, all-in-one polishing workstation designed for a wide range of photonic applications.

Key Takeaways from the Interview

All-in-One Integration:
The NOVA system combines both the processing and inspection of photonic chips and components directly within the machine—boosting throughput and improving process control.

Versatile Applications:
NOVA is adaptable for standard fiber connectors, aerospace interfaces, medical devices, and now most prominently, photonic integrated circuits (PICs) and waveguides.

High Demand for PIC and Waveguide Processing:
Cheswick noted that most customer inquiries in the past year have centered on PICs and waveguides, underscoring the industry's need for precise and adaptable processing solutions.

Precision Material Removal:

The system enables micron-level material removal. With steps as fine as 5 microns, NOVA offers the precision needed for demanding photonic applications where ±25 micron tolerances are standard.

Advanced Fixturing:
Fixtures feature independent suspension, allowing multiple components to be polished simultaneously with uniform pressure across all contact points.

Control Over Key Parameters:
Users can manually adjust polishing pressure, speed, and cycle time, then transfer those settings to programmable modes using the same interface.

Full Transcript: Photonics Online Interview with Al Cheswick

0:00
Hello, my name is Al Cheswick.
0:01
I'm President of Krell Technologies.
0:04
We're here at Photonics West displaying our line of photonic polishing inspection systems.
0:10
We're highlighting our NOVA system, which is a highly configurable polishing unit.
0:16
It's basically a polishing work cell because it integrates both the processing of the chip and photonic components and also the inspection of them, all while they're in the machine itself.
0:28
The system is flexible and configurable for applications ranging from standard connectors and terminize to high reliability aerospace interfaces, medical probes and devices.
0:45
And now the newer area is photonic integrated circuits and waveguides.
0:53
That's been most of our inquiries over the past year have been these type of devices and being able to process them.
1:00
There are certain challenges with processing waveguides and PICs.
1:05
These include material removal, control, surface finish and controlling the geometry of the end face.
1:13
Hence our fixturing is developed to have adjustability for different size chips because in the R&D phases which most of these chips are in now, the final dimensions are not set so you need adjustability for holding.
1:29
Additionally, you need variability on angles in order to control various things as reflectance and different types of light control.
1:40
Hence our system for material removal.
1:43
We have an interface that allows you to control all the primary parameters of polishing, which are pressure, speed and cycle timing.
1:53
These can be all adjusted in the manual mode, and basically that data that's accumulated can then be transferred to programmable modes with the same user interface.
2:05
Hence, I'm going to start the machine.
2:06
So basically we have a waveguide chip loaded in here and we can advance it.
2:13
As we're looking here on the video monitor.
2:16
This is the waveguide chip and this is the polishing surface.
2:20
We found that the tolerance for material removal is on the order of ±25 microns for most applications.
2:30
Hence the machine that you specify must have a movement of a less than that.
2:35
And our Nova has a movement of five microns.
2:38
So I'm able to step each one of these steps is five microns of movement.
2:44
Hence you can control the stock removal very accurately, which is critical for pick processing.
2:51
Another feature is our fixtures have what we call independent suspension.
2:56
So if you're polishing multiple wave guides, each has its own freedom of movement in the Z axis.
3:02
What this provides is better pressure control and uniform distribution.
3:07
So one position is not getting more excessive pressure than an additional adjacent position and preventing any damage and provides more uniform polishing results.
3:19
So that's pretty much a summary of our equipment.
3:22
And we urge anyone that's seen this video now to stop by our booth—we’ll be here the remainder of the show on Wednesday and Thursday.
