Proton™ Field and FTTX Polisher

Proton™ Field and FTTX Polisher

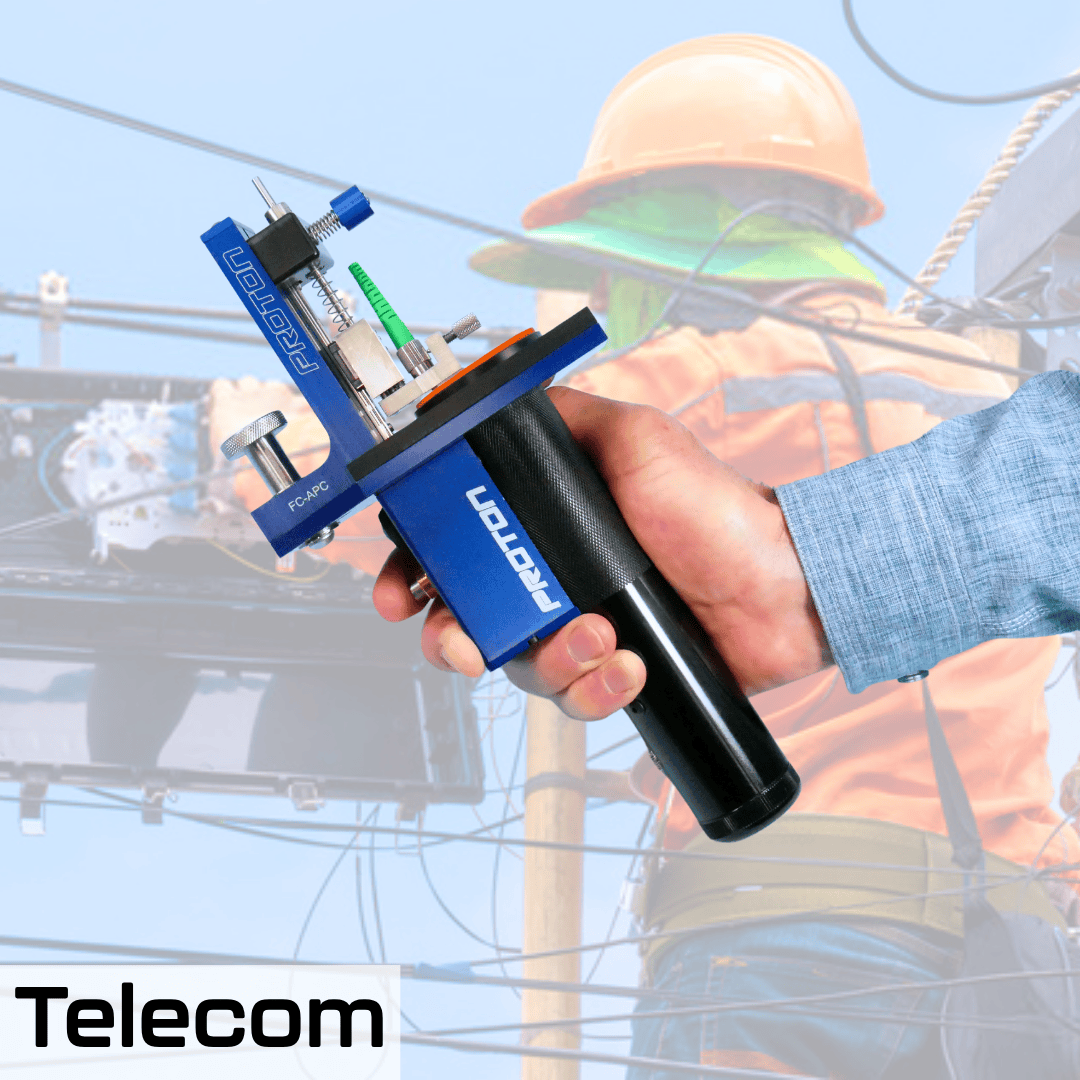

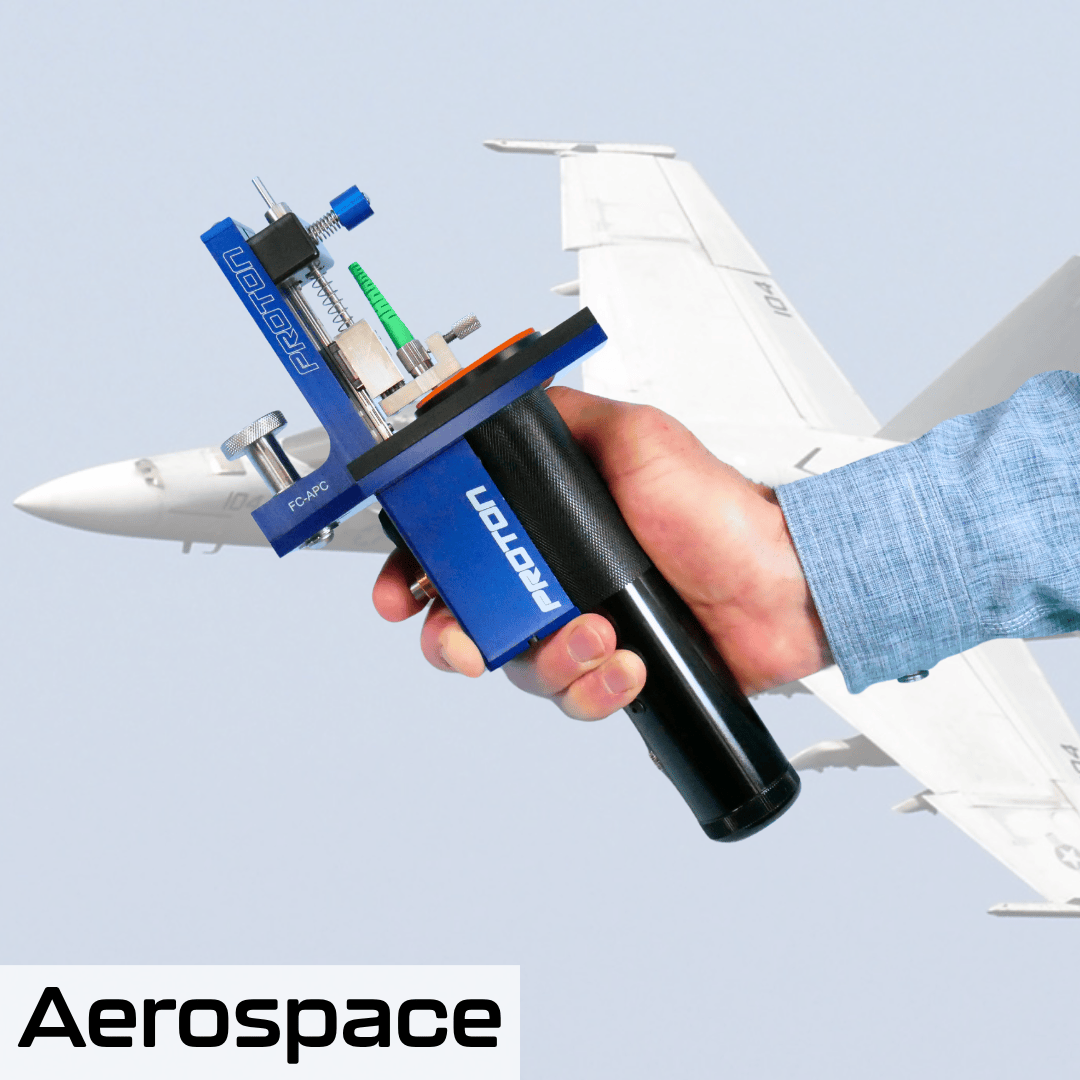

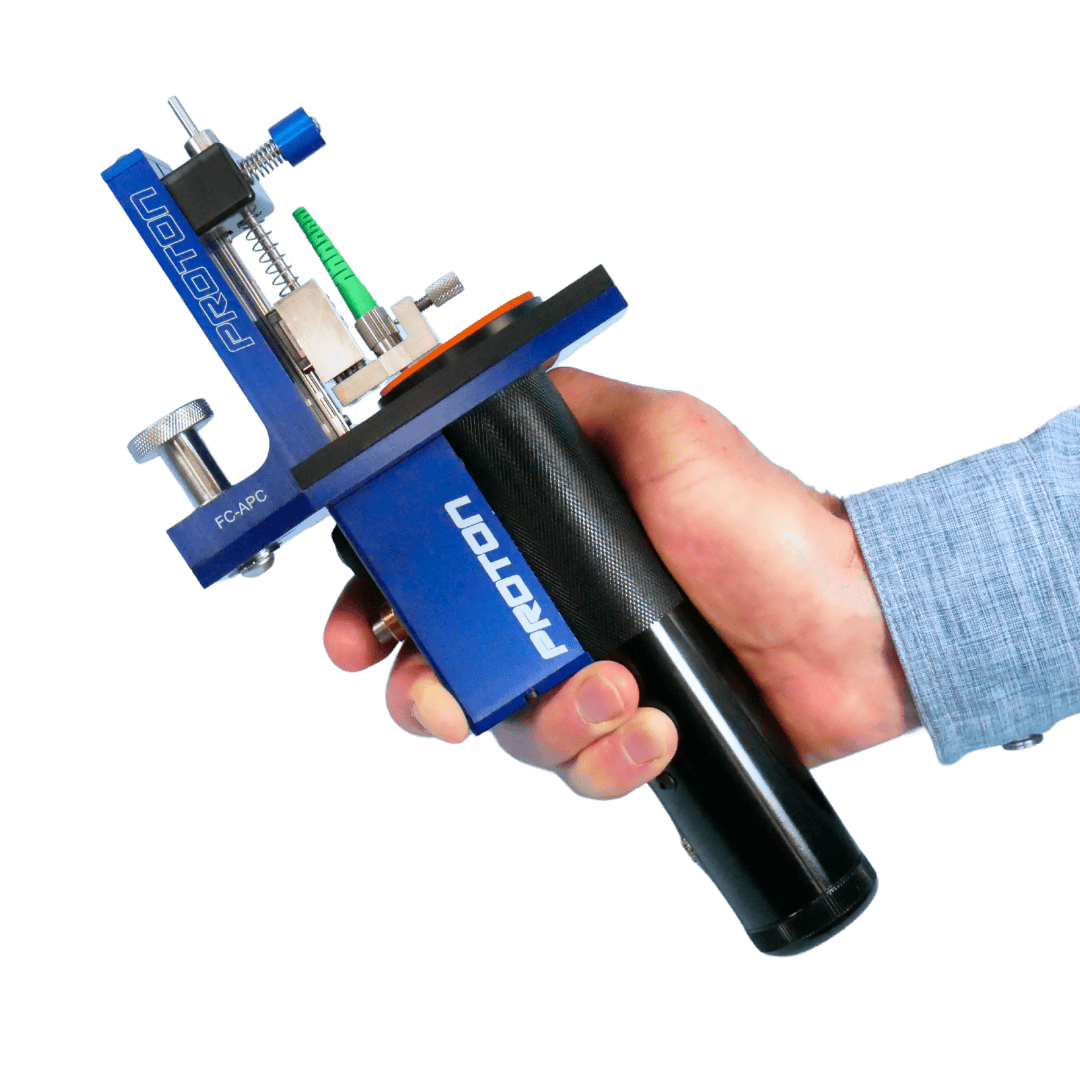

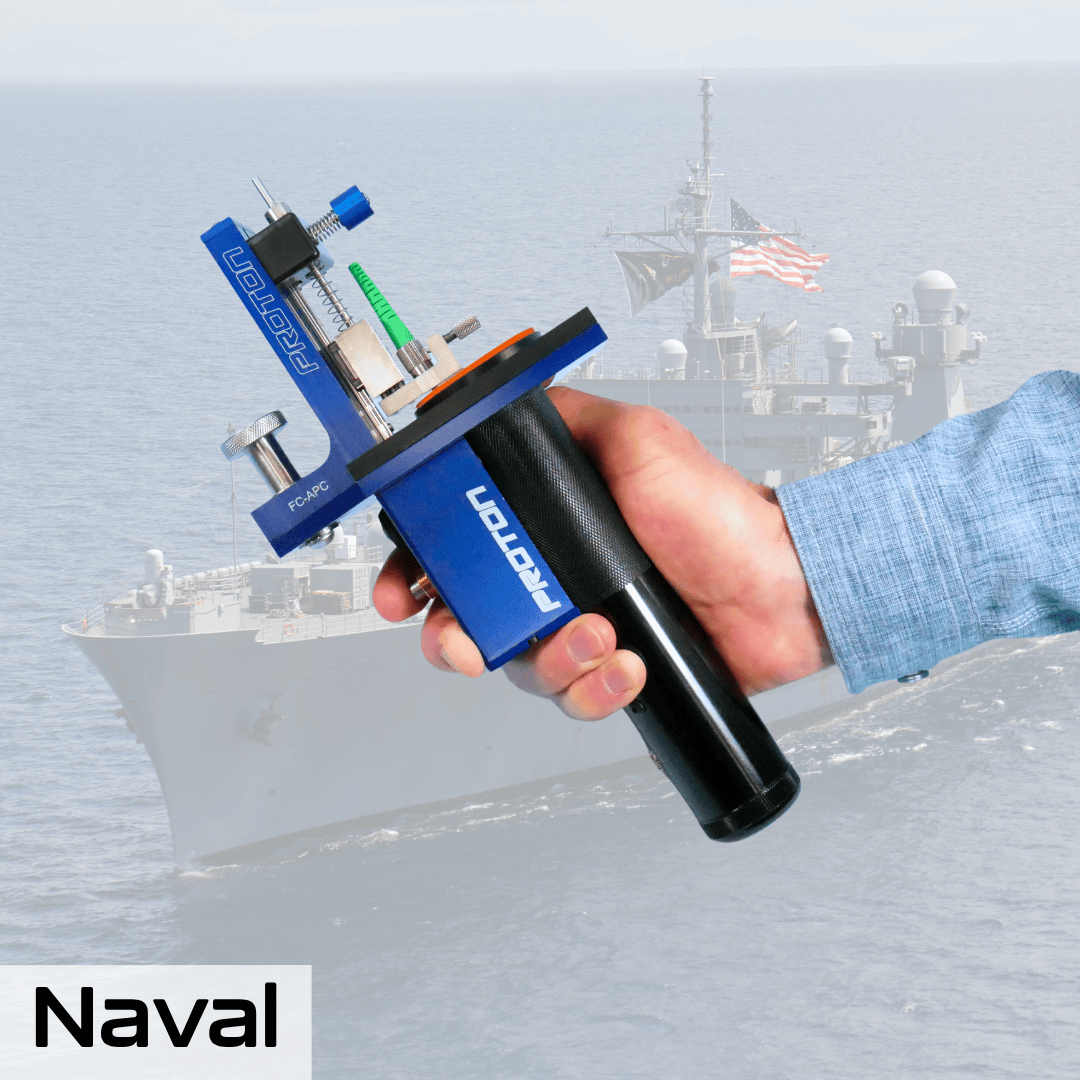

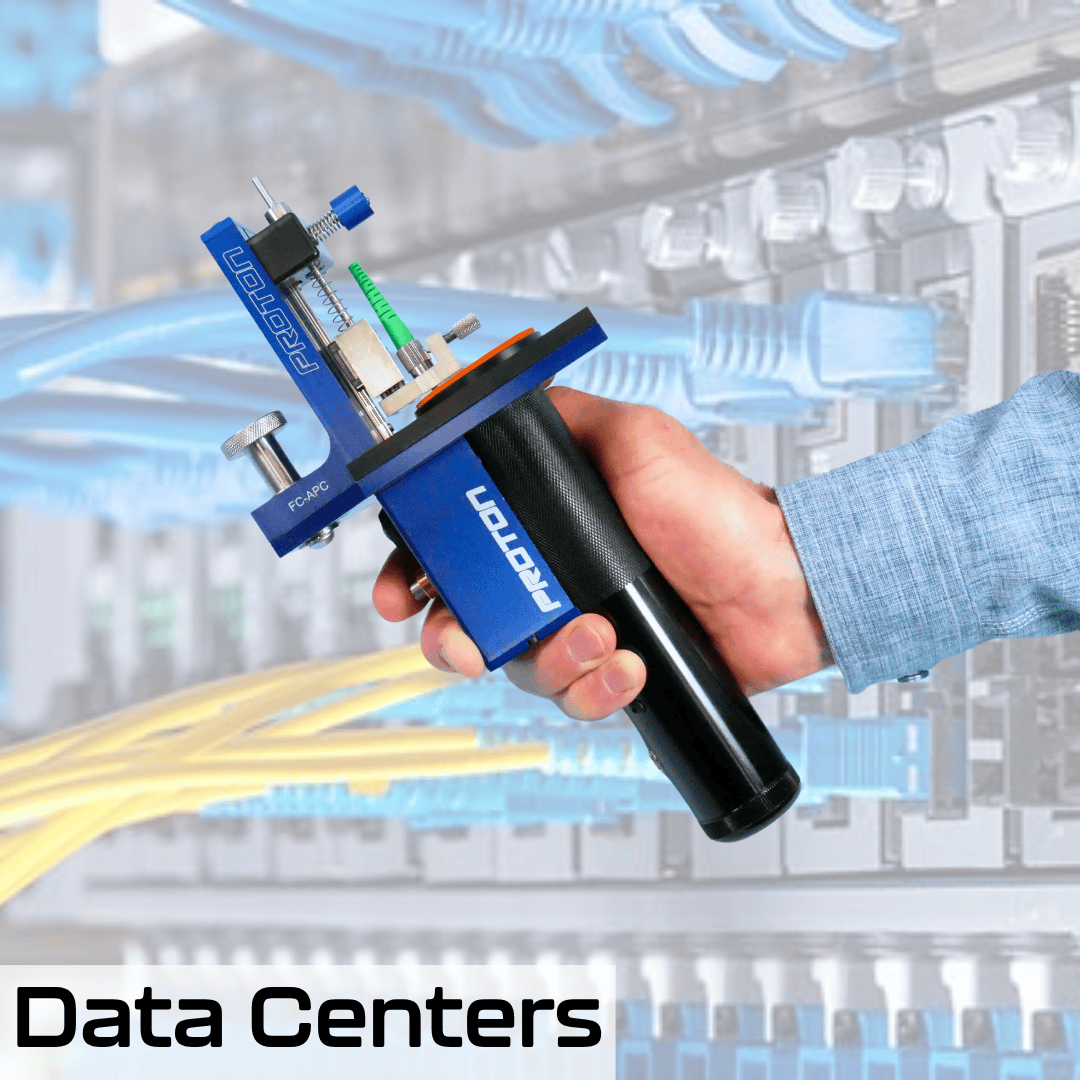

Proton™ consistently achieves Telcordia compliant, singlemode UPC and APC finishes in a handheld and battery operated package. Proton™ incorporates the same Independent Suspension (IS) and optically aligned workholder design found in Krell’s Scepter™ Mass Production Polishing Systems. Proton™ can polish connectors sideways and at most orientations, permitting access to cabling in the tight confines of datacom wire closets, LAN cross-connects, and CATV fiber nodes. Proton™’s portability lends itself to various military and aerospace applications and networks in which field-deployed optical connectors are terminated or require servicing and repair. Mil-spec components and termini including M29504, LuxCis, ARINC 801, ELIO, MC5, RSC, etc.



Starting at
$ 4,500
Data Sheet Get Quote

Read the Data Sheet

Related Videos:

Proton FTTX Polisher: Operation Video

Proton Video Manual

Related Q&A:

Oct. 6, 2022, 2:19 p.m.
Q

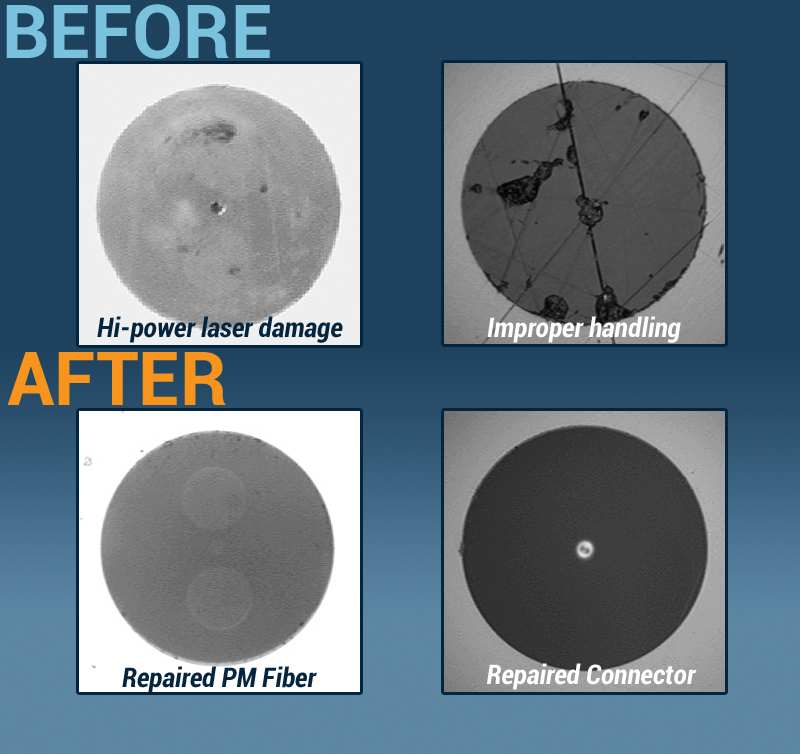

Can this recover damaged connectors to Telcordia specifications?
A
Proton's actively aligned workholders are designed to achieve Telcordia geometries on ferrule endfaces.
Oct. 6, 2022, 2:15 p.m.
Q

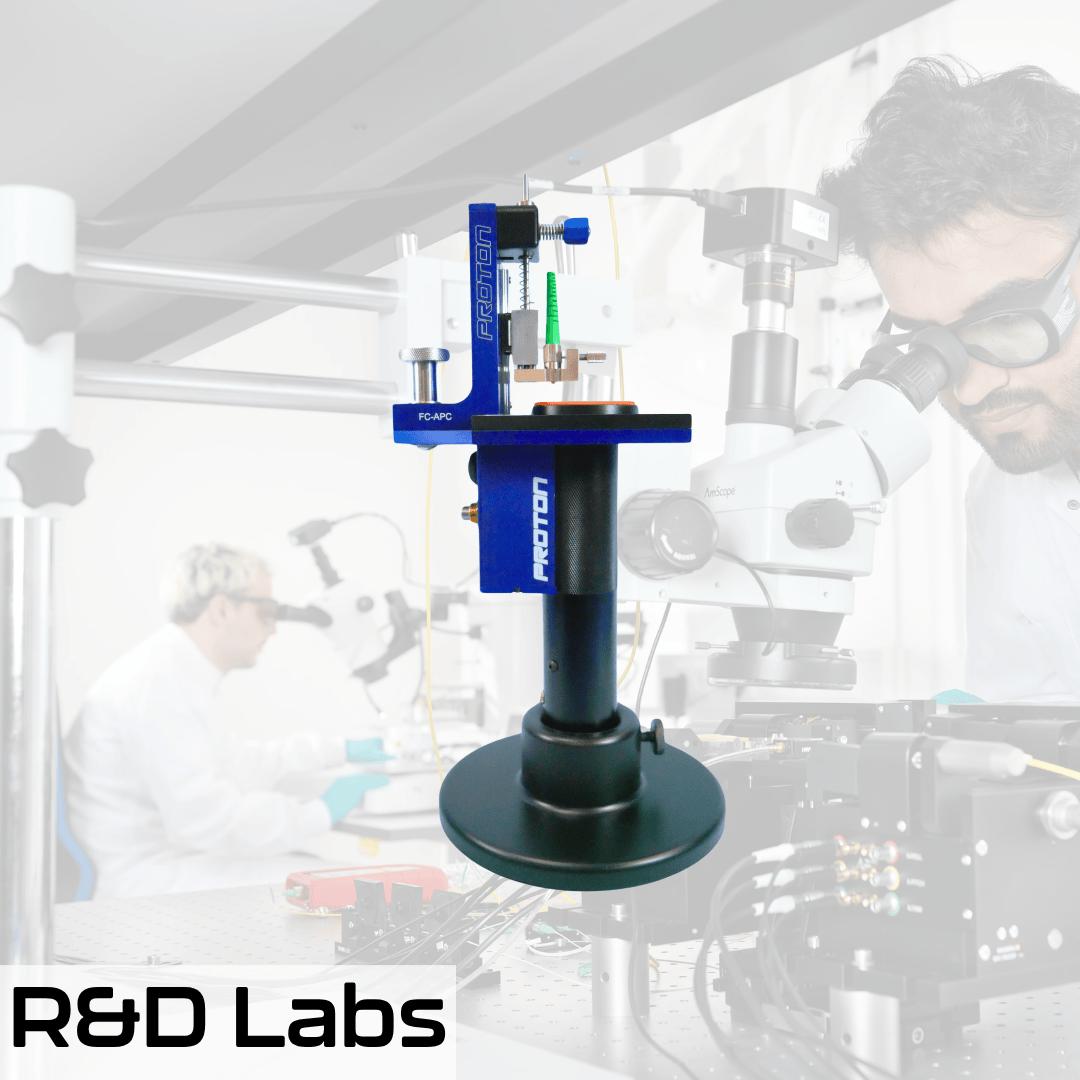

Can this polisher be used in a lab?
A
Yes. We offer a stand for benchtop/table operation.
Sept. 21, 2020, 4:48 p.m.
Q
What is included with the purchase of this unit? Does it polish SC, LC, FC both UPC and APC? Thanks.
A
Workholder fixtures (ie. for SC-UPC, SC-APC, FC-UPC, FC-APC, etc) are purchased as needed with the base Proton polisher. Please forward your specific connector requirements to sales@krelltech.com and we will generate a quotation for your application.
April 14, 2020, 6:39 p.m.
Q
Can Proton polish two connectors?
A
Since Proton is designed for repair, only one connector can be polished at a time.
April 2, 2020, 8:54 p.m.
Q
Can Proton be used to polish newly terminated connectors?
A
Proton is designed to be used in the termination process, as well as repairing damaged connectors and termini.
April 2, 2020, 3:25 p.m.
Q
Does the Proton have a built-in polishing timer?
A
Yes, the timer allows for adjustable cycles for polishing routines.
March 31, 2020, 8:18 p.m.
Q
Is the proton battery powered?
A
It is indeed!
March 26, 2020, 6:16 p.m.
Q
Is the Proton portable?
A
Yes!
March 24, 2020, 8:01 p.m.
Q

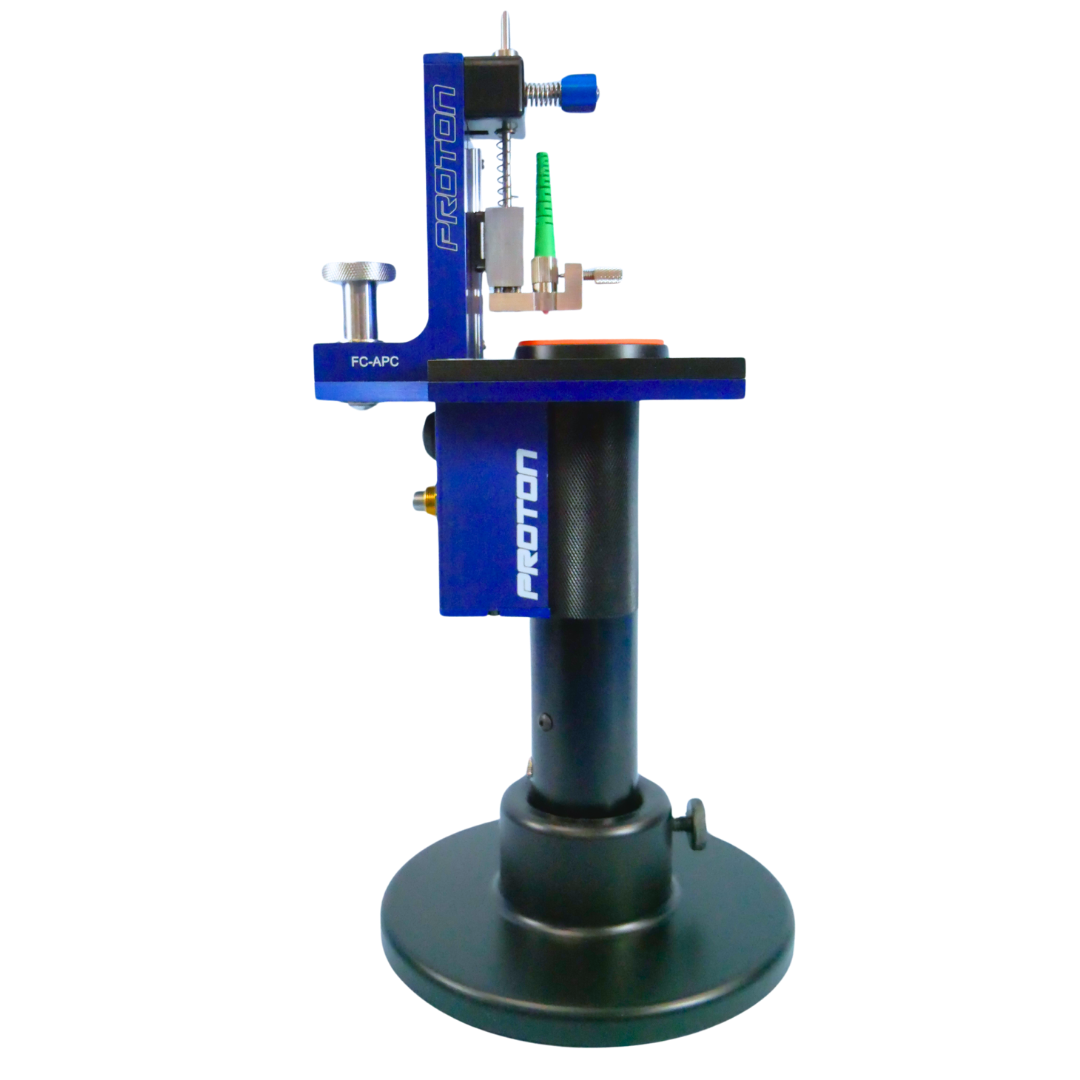

Can I purchase a stand for the Proton Field Polisher?
A
Yes, a stand is available for tabletop operation.
March 23, 2020, 8:22 p.m.
Q
Is Proton left, or right handed?
A
Proton can be operated by either hand.
March 12, 2020, 7:18 p.m.
Q
Does Proton only repair damaged connector?
A
Proton can repaired damaged connectors and also polish newly terminated connectors.
Feb. 2, 2020, 9:39 p.m.
Q
Can Proton polish these attached connectors?
A
Yes, these and all UPC style termini and connectors.
Jan. 3, 2020, 5:35 p.m.
Q
Can Proton run on AC power?
A
Yes, both AC power and standard 9 volt battery operation.
See more

Proton™ FTTX Field Polisher SINGLEMODE PERFORMANCE COMPLETE HAND-HELD OPERATION INDEPENDENT SUSPENSION WORKHOLDERS SUPPORTS ALL INDUSTRY STANDARD AND MIL-SPEC CONNECTORS/TERMINI TELCORDIA COMPLIANT SPECIFICATIONS AND FEATURES Optical Performance1 Polishing Performance2 Operational Back Reflection Apex Offset Connector Support < -60 dB, UPC < 50 microns, maximum All industry standard, < -65 dB, APC < 15 microns, typical Mil-spec and custom Insertion Loss Radius of Curvature connectors/termini < 0.25 dB, typical 10-25 mm, 2.5 mm ferrules Process Time4 7-20 mm, 1.25 mm ferrules New termination: 2 min. 1 Optical performance may vary between connector 5-12 mm, APC ferrules Connector repair: < 1 min. manufacturers. Undercut/Protrusion3 Polishing Pressure 0 to -50 nm Adjustable, linear displacement 2 Cycle Timing Polishing performance meets and exceeds Telcordia specifications, and can be optimized for specific applications. User adjustable 3 Dependent upon radius of curvature Polishing Motion Random orbital Production performance is now available in field environments in the form of Power Proton. Though portable and battery operated, Proton consistently 9 volt alkaline achieves singlemode UPC and APC finishes. Proton incorporates the same AC adapter 5 Independent Suspension (IS) and optically aligned workholder design found Weight in Krell’s mass production Scepter Polishing System. 1.8 lbs 4 Singlemode UPC/APC finish. VERSATILE Proton has been conceived for true hand-held operation. Connectors can be loaded, polishing pressure set and films changed-out without the need of a table, workbench or external support. Proton can polish connectors sideways and at most orientations, permitting access to cabling in the tight confines of wire closets, cross-connects and fiber nodes. PORTABLE This unique design makes Proton the ideal choice for all field networks such as Fiber to the Home/Premise (FTTX), shipboard/aircraft, CATV and LAN. Whether the application is a new installation, connector repair or even R&D efforts, Proton provides the required performance. Proton™ workholders feature Independent Suspension (IS) for 5 Patent No. 7,070,338B1. Specifications are subject to change without notice. Rev. 2, 1/13 controlled pressure and uniform contact with the polishing surface. The workholder is also optically aligned. for optimal polish geometry. krell technologies, inc. · tel: (732) 617-7091 · sales@krelltech.com · www.krelltech.com
