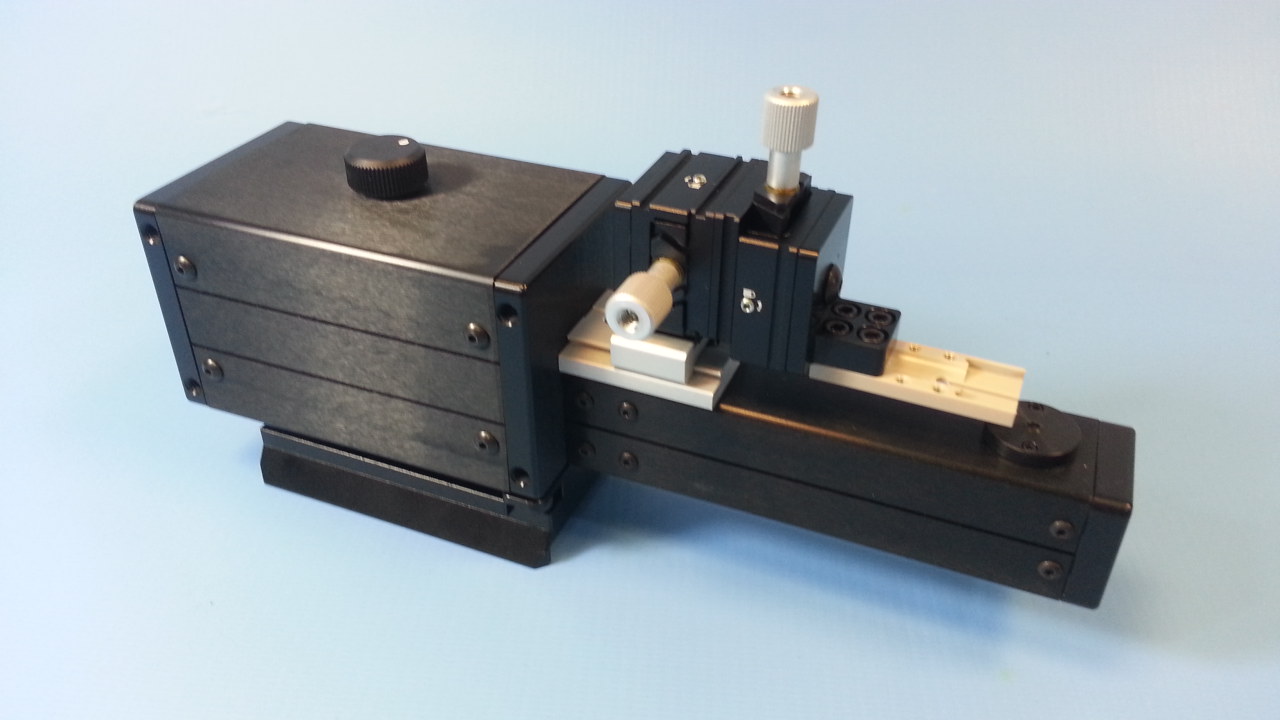

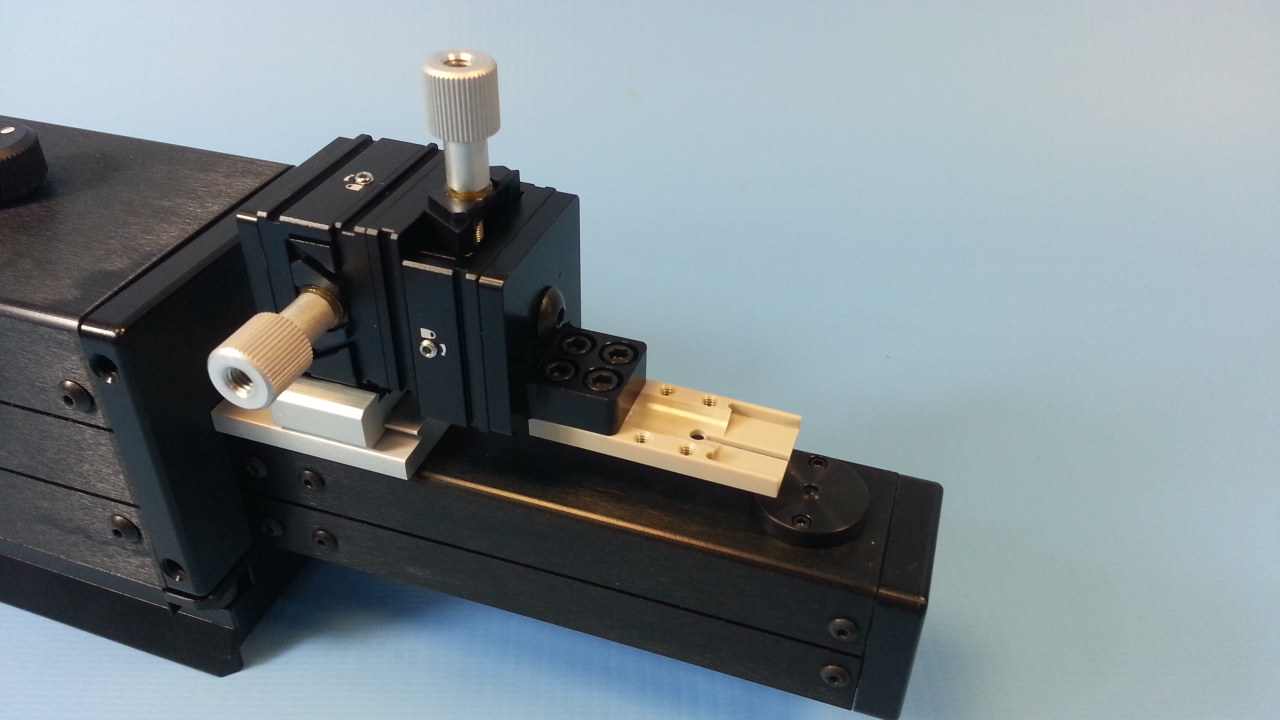

SpecVision™ Video Inspection Scope

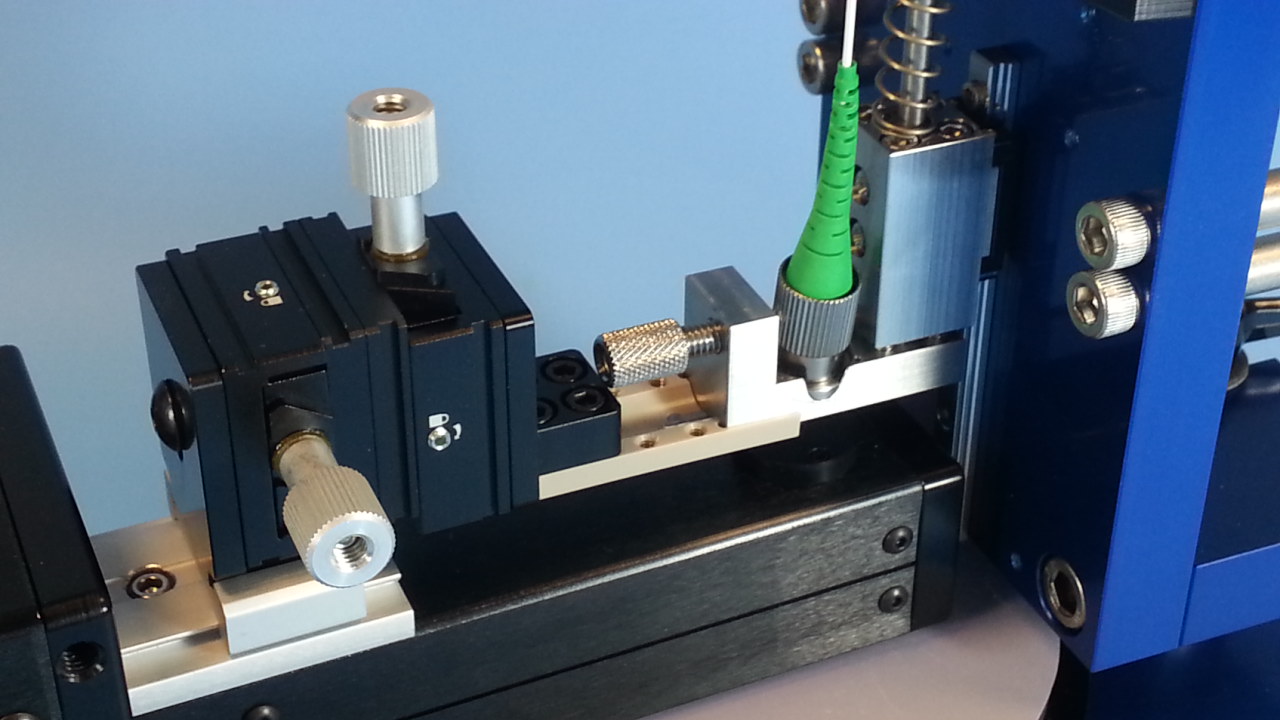

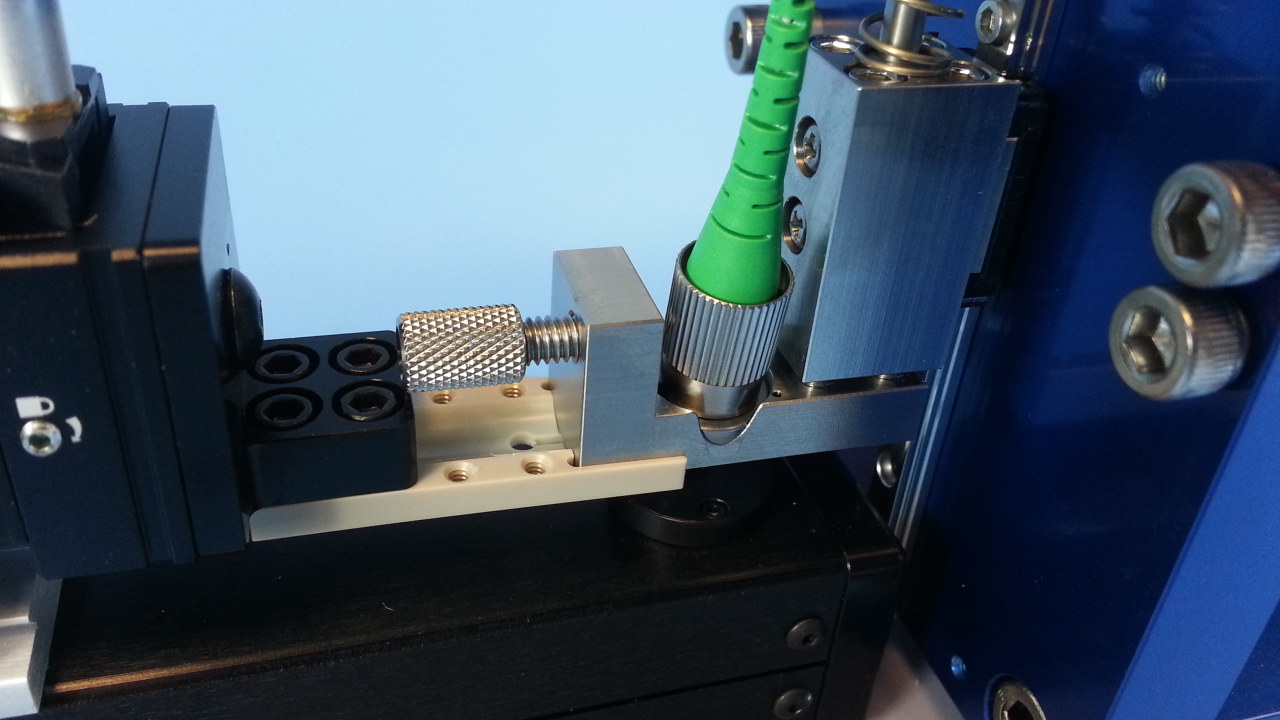

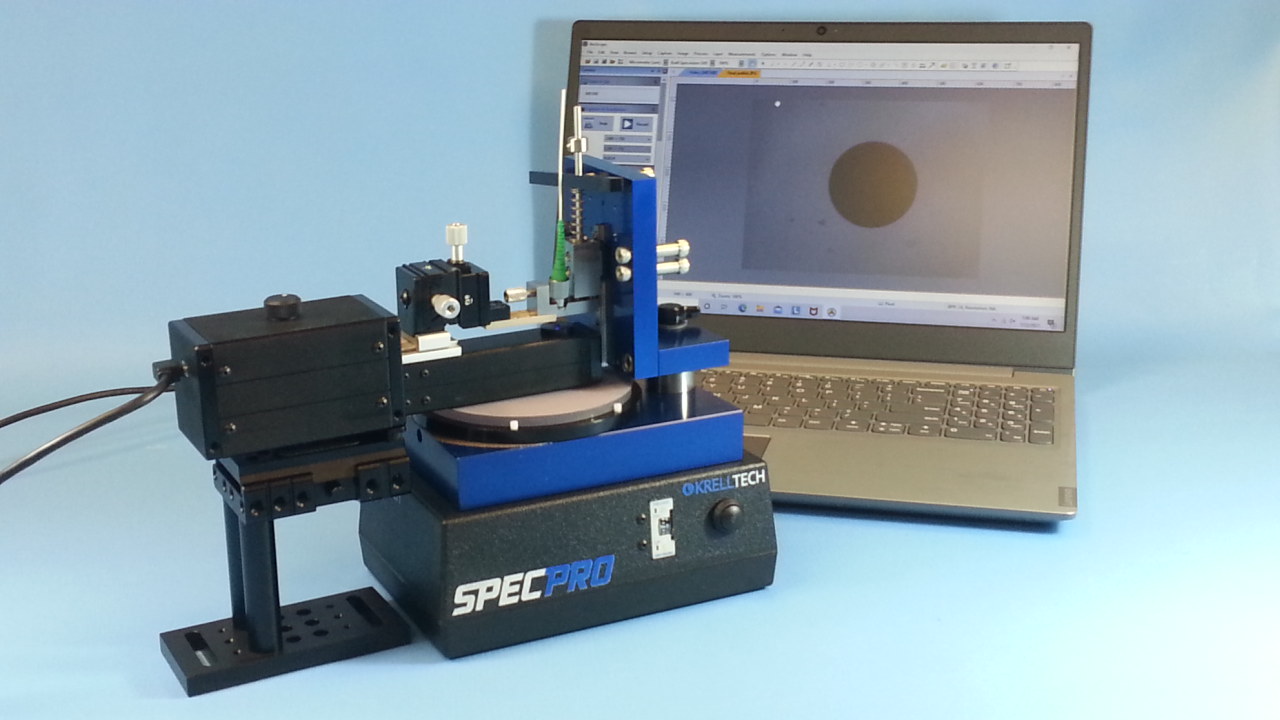

SpecVision™ is a video probe and fiberscope that engages directly with Krell polishing machines. This permits the viewing of polished optical surfaces while connectors or bare fibers are still loaded in the polisher. This in-line video inspection technique minimizes material handling and potential damage/contamination that may occur when transferring components from the polisher to a traditional microscope. SpecVision™ can interface with Scepter™, NOVA™, SpecPro™ and Rev™ Polishers.

March 26, 2020, 6:54 p.m.
Q
Is the laptop included?
A
Yes!
March 26, 2020, 6:54 p.m.
Q
Is this compatible with SpecPro?
A
Yes
March 26, 2020, 5:34 p.m.
Q
Is this compatible with the Nova Fiber Optic Polisher?
A
Yes.
March 23, 2020, 8:16 p.m.
Q
What is the magnification?
A
Options are available for 200X and 400X.
Jan. 3, 2020, 10:56 p.m.
Q
Does this microscope work with MT ferrules?
A
Yes. Multi-fiber connectors can be inspected with SpecVision.

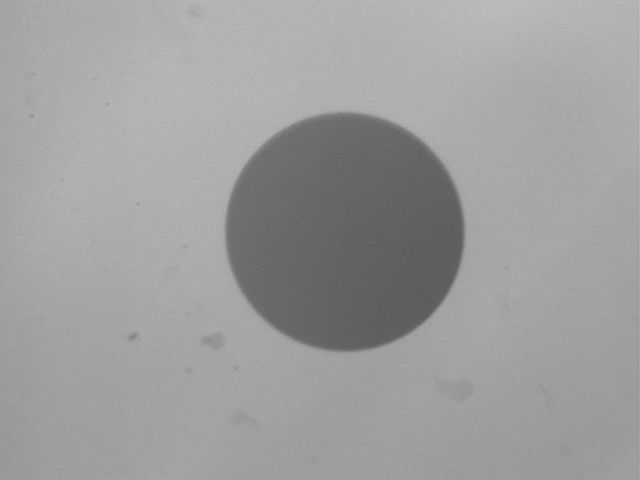

SpecVison™ SV 7 In-line Fiber Optic Video Inspection Text2 SURFACE VISUAL INSPECTION OF CONNECTORS, BARE FIBERS AND OPTICAL COMPONENTS ENGAGES WITH KRELL POLISHING FIXTURES INSPECTION WHILE COMPONENTS ARE LOADED IN POLISHER MINIMIZES MATERIAL HANDLING AND POTENTIAL COMPONENT DAMAGE COAXIAL LIGHTING FOR DEFECT DETECTION WIRELESS OPTION SPECIFICATIONS AND FEATURES Videoscope Probe Polisher Support Power Scepter™, SpecPro™ AC adapter power cord 2 and Rev ™ (standard) Magnification Rechargeable internal battery 400X image of standard fiber 400X magnification for polished 400x (standard) (wireless option) optic connector end-face PM bare fiber Interchangeable lenses Dimensions available for custom 7.5”L x 1.5”W x 2.25”H magnifications (190 x 38 x 57 mm) Illumination Weight Coaxial via high intensity 0.5 lbs. white LED Video Interface BNC connector/cable Optional, wireless transmitter/receiver Video Signal 200X magnification for inpsecting polished EIA/NTSC compatible waveguide end-face 2 Rev Inspection SpecPro Inspection Scepter Inspection SpecVision™ docks with all Krell SpecVision™ can be used for final A universal mating mechanism polishers to identify connector quality assurance, or to monitor each engages with all Krell workholders for scratches and defects. The connector step of the polishing process. Coaxial quick and easy alignment. Optics are or bare fiber does not need to be lighting allows for uniform illumination, also available for viewing multi-fiber removed for inspection, therefore enabling scratches and imperfections to connectors, waveguides, lenses, etc. saving time and material handling. easily be seen. F Specifications subject to change without notice Rev. 1, 1/13 krell technologies, inc. · tel: (732) 617-7091 · www.krelltech.com · sales@krelltech.com
